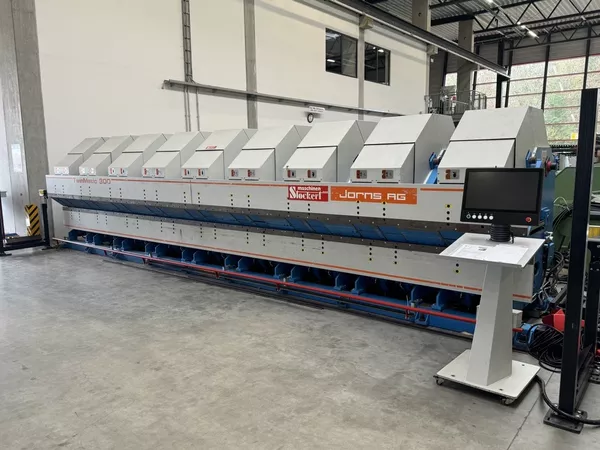

Jorns TwinMatic-300-SO-1150-CP200 Working length: 8000 mm

Machine type: Double folding machine
Control: CP 200 with 17" TFT touchscreen
Max. sheet thickness (steel): 3.0 mm
Max. sheet thickness (aluminum): 4.0 mm
Max. sheet thickness (stainless steel): 2.0 mm
Max. bending angle: 145°
Insertion depth: 1150 mm
Backgauge (max.): 1150 mm
Backgauge (min.): 150 mm
Dynamic positioning (DP): Yes
Sheet thickness adjustment: Yes
Number of stands: 9 pcs
Machine dimensions: 10900 × (2367 × 700) + fence 2070 mm
Machine weight: 26000 kg
Total power requirement: 400 V
Color: Light blue / light gray
Frame type: Welded construction with 9 stands, 9 clamping cylinders, 36 coupling joints
Upper beam: With waterfold groove
Top beam safety system: Yes
Emergency stop rail along full machine length: Yes
Foot pedal with integrated emergency stop: Yes
Second foot pedal for two-operator mode: Yes
Upper beam securing system: Yes
Short-part clamping fingers: 2 pcs
Front rail: Included
Brush table: Included
Oil filling: Included
Mounting and leveling material: Included
Condition: Used (repaired, tested, cleaned, fully functional)
Test run: Performed
