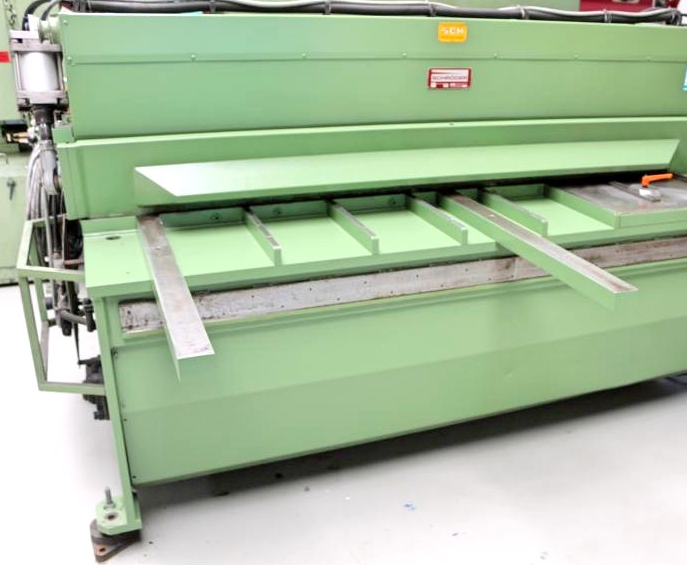

Schroeder MSS 2030 x 4.0 Sheet width: 2040 mm

Sheet width: 2040 mm
Plate thickness: 4.0 mm ST
Plate thickness: 6.0 mm ALU
Thickness at "Niro-steel": 2.5 mm
Distance between columns: 2100 mm
No. of strokes: ca. 32 strokes/min
Cutting angle: 2.0 °
Table height: ca. 820 mm
Control: SCHRÖDER / ELGO
Total power requirement: 5.5 kW
Weight: 3250 kg
Range L-W-H: 2400 x 1400 x 1100 mm

Robust, motorized swing-cut guillotine shears
Shatter-proof, torsion-free welded steel construction
Compact and clearly arranged machine design
NC electro-motorized backgauge with SCHRÖDER / ELGO NC control unit
Manual cutting gap adjustment, centralized
1x hold-down bar
1x sturdy 1.000 mm side stop, including T-slot and mm scale
2x front support arms, 1.000 mm
Grip recesses in the support table
1x freely movable foot switch
Rear sheet chute
Operating instructions
