Schroeder MAK II 2000 x 3.5 Sheet width: 2050 mm

Ref : 2730213-3-MT

Condition : Used

Manufacturer : Schroeder

Model : MAK II 2000 x 3.5

Sheet Size : Sheet width: 2050 mm

Year(s) : 1991

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

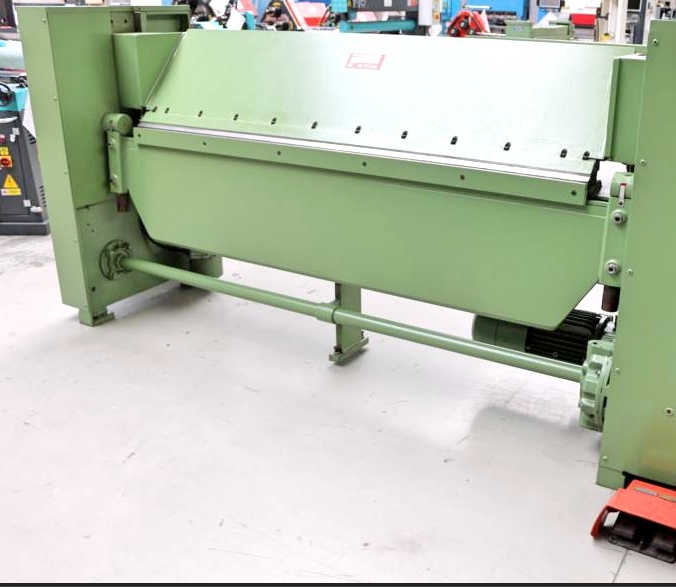

SCHROEDER MAK II 2000 x 3.5
1991

Control type: conventional
Sheet width: 2050 mm
Plate thickness: 3.5 mm
Distance between columns: 2100 mm
Upper beam stroke: 250 mm
Adjustment: UW 80.0 mm
Max. working height: 920 mm
Total power requirement: 6.0 kW
Weight: 2910 kg
Dimensions (L×W×H): 3185 x 875 x 1450 mm

Features
Electric-driven folding machine
Dynamic, powerful drive motors
Manual/automatic operation selectable
Control panel on right front
Bending angle preselection via electric potentiometer
Manual lower beam adjustment
1 used upper tool rail
2 used lower tool rails
1 freely movable double foot switch
Original operating instructions
