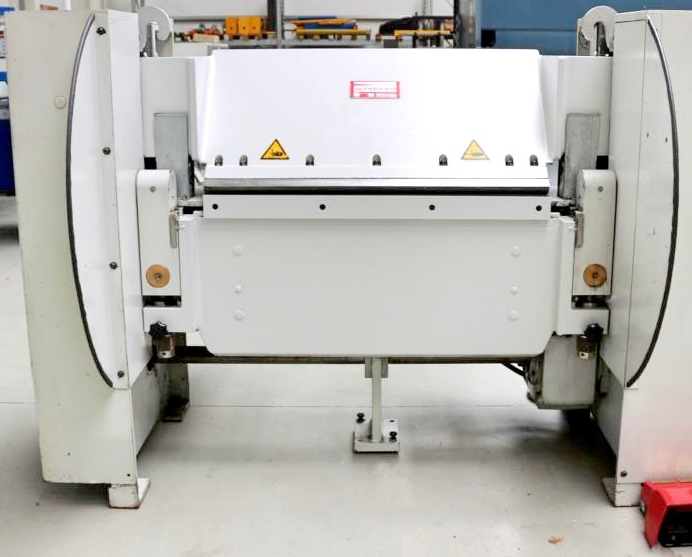

Schroeder MAK II 1000 x 4.0 sheet width: 1020 mm

Ref : 2731483-3-MT

Condition : Used

Manufacturer : Schroeder

Model : MAK II 1000 x 4.0

Sheet Size : sheet width: 1020 mm

Year(s) : 2003

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

plate thickness: 4.0 mm
distance between columns: 1100 mm
stroke of upper beam: 250 mm
lower beam adjustment: 50.0 mm
back stop - adjustable: max. 750 mm
control: POS 400
total power requirement: 4.4 kW
weight: 1960 kg
range L-W-H: 2065 x 1500 x 1425 mm

Robust electric-driven folding machine
Dynamic, powerful drive motors
SCHRÖDER NC control unit "POS 400"
Bending angle preselection
Control panel, right front
Manual backgauge, adjustable from the rear
Adjustment range up to max. 750 mm
Manual lower beam adjustment
1x freely movable double foot switch
1x set of bending tools
Emergency stop button at the front
Original operating instructions
