Schroeder MAK II / 3020 x 2.0 sheet width: 3020 mm

Ref : 2731475-3-MT

Condition : Used

Manufacturer : Schroeder

Model : MAK II / 3020 x 2.0

Sheet Size : sheet width: 3020 mm

Year(s) : 2007

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

plate thickness: 2.0 mm
bending angle max.: 135°
stroke of upper beam: 250 mm
adjustment folding beam: 25.0 mm
work height max.: 935 mm
control: SCHRÖDER NC
total power requirement: 6.0 kW
weight of the machine ca.: 3350 kg
dimensions of the machine ca.: 4250 x 2300 x 1900 mm

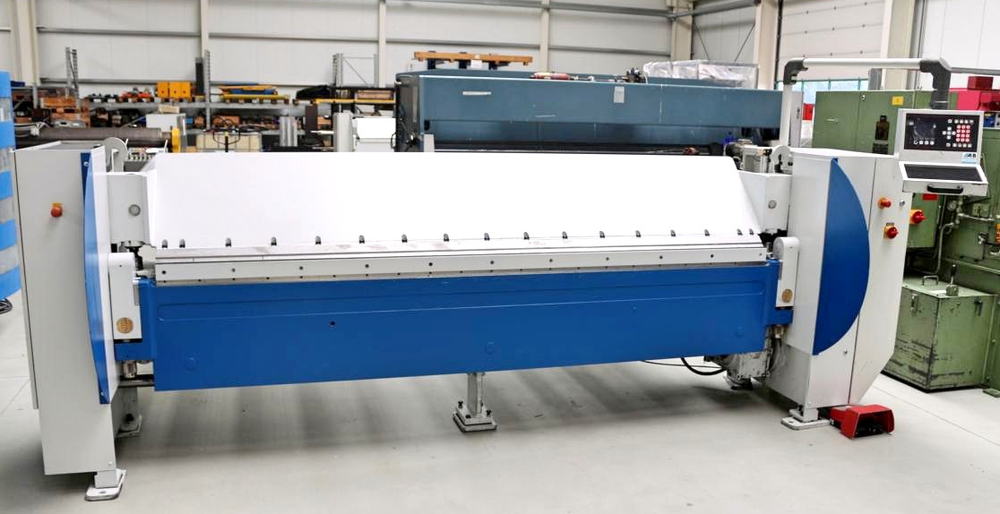

Dynamic, powerful motorized folding machine
Used SCHRÖDER NC control unit with LCD display
Manual, setup, and automatic operation
Fast programming of individual parts
Pivoting control panel, right front
NC electro-motorized backgauge with rear sheet support surface
Manual lower beam adjustment
1x freely movable double foot switch
1x bending tool set
2x emergency stop buttons at the front
Operating instructions (PDF)
