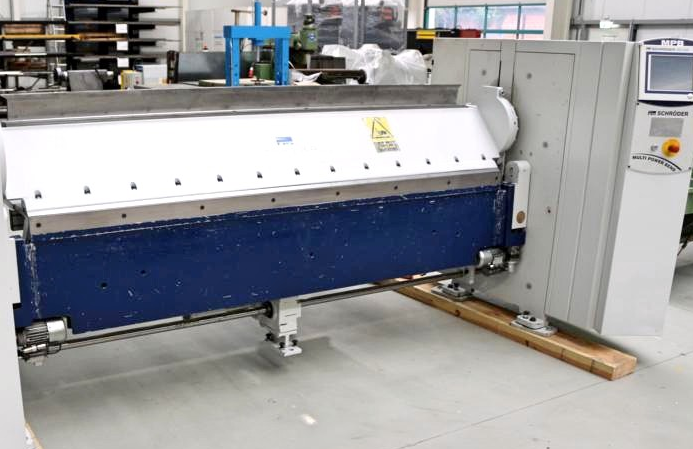

Schroeder MPB 2500/2.5 Sheet width 2,520 mm

Plate thickness 2.50 mm ST
Thickness at stainless steel 1.50 mm
Upper clamping bar adjustment 160 mm
Adjustment speed 100 mm/sec
Adjustment folding beam 80 mm
Bending speed 120 °/sec
Compressed air 6.0 bar
Work height max. 869 mm
Control POS 2000 CNC
Total power requirement 7.2 kW
Voltage 400 V
Weight 3,430 kg
Machine dimensions 4,120 × 2,400 × 2,090 mm
CNC electric motor-driven universal swivel bending machine
High-precision mechanics with modern control technology
For individual and series production
Robust high-speed machine with high axis speeds
Torsion-free welded construction
Rotatable upper beam as automatic tool change system
2 × tool stations (sharp and goose foot bending rail)
SCHROEDER CNC control model POS 2000
Control panel at front right, operable with PC mouse
Color display
USB interface
Automatic cutting calculation
Material and tool library
Dimensionally accurate bending simulation
Windows XP operating system
Swivel control, front right
Servo converter-controlled drives for bending/upper beam & electric backgauge
CNC motorized lower beam adjustment
CNC electric motorized backgauge, travel speed 300 mm/sec
Rear sheet metal support surface with ball rollers
1 × freely movable double foot switch
Operating instructions (PDF)
