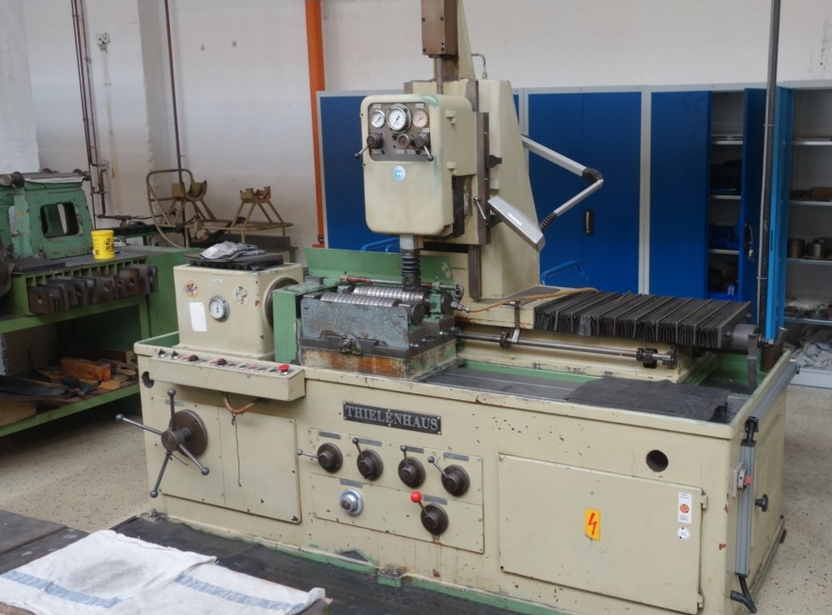

Thielenhaus MA 3/1000

Spindle Bore: 40 mm
Tool Speed: 30–500 rpm
Oscillation Frequency: 500–1400 DH/min
Contact Pressure: 60 kp
Accuracy: ±0.001 mm
Max. Machining Diameter: 350 mm
Machining Diameter for Centreless: 70–150 mm
Max. Part Size: Ø 155 mm
Max. Part Length: 1000 mm
Part Length for Centreless: 300 mm
Workpiece Spindle Speed: 30–500 rpm
Total Power Requirement: 6.4 kW
Voltage: 380/400 V
Stock of Finishing Abrasive Media Included
Application: High-Precision Surface Fine Grinding of Piston Pins
