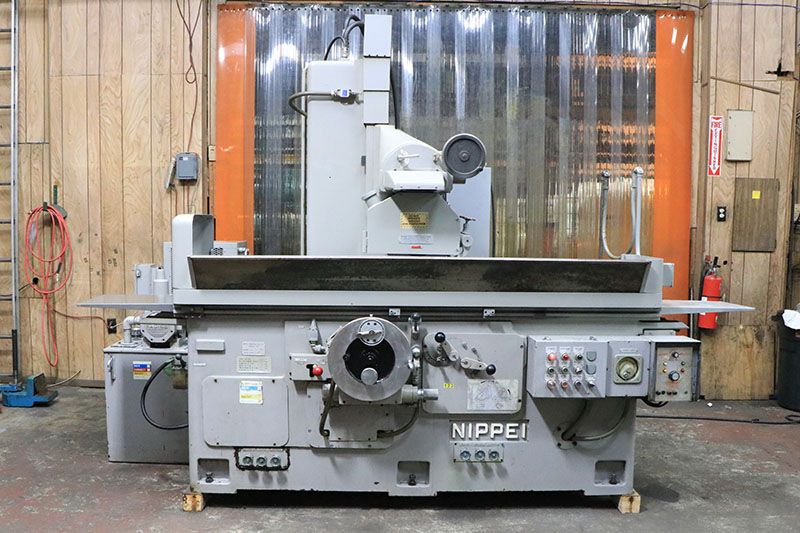

Nippei, Thompson FSH-30/90 Surface Grinder

Width & Length Ground 12" x 36"
Vertical Capacity with New Wheel 16.75"
Grinding Wheel Size 14" x 2" x 5"
Longitudinal Table Travel 72"
Hydraulic Table Speed 10' to 100' FPM
Cross Feed Travel 28"
Auto Cross Feed Increment 0.03" to 1"
Cross Feed Hand Wheel Graduation 0.001"
Wheelhead Crossfeed Rapid Traverse 20' FPM
Approximate Machine Weight 12,000 lbs
Auto Incremental Downfeed
Hydraulic Longitudinal & Cross Feeds
Coolant System in Base
Table Ways Lubricated by Hydraulic System
Column & Saddle Ways Lubricated by Separate Hand Pump
5 HP Hydraulic Pump Motor
5 HP Spindle Motor
Manual Operation with Electrical Prints
Wired for 3/60/230 Volts
