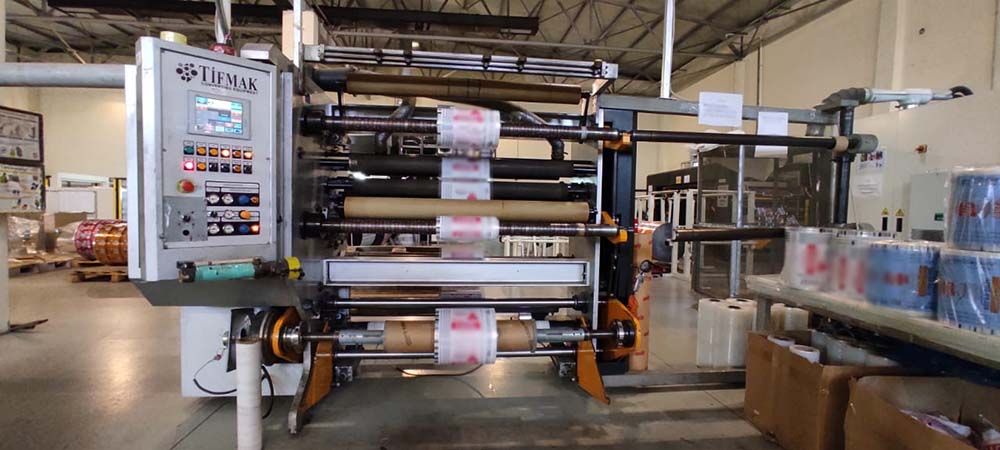

Tifmak Slitter Rewinder 1300 mm
Ref :
2739892-4-MT
Condition :
Used
Manufacturer :
Tifmak
Model :
Slitter Rewinder
Size :
1300 mm
Year(s) :
2013
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Materials: BOPP, PP ,CAST, ALU, LDPE, NYLON, PETP, OPA, Paper, PE, CPP, BOPET
Working width 1300 mm
Parent Roll Diameter 780 mm
Final Roll Diameter 560 mm
Maximum mother reel weight 400 kg
Finished Roll Weight 200 kg
Duble Unwinder
Unwinder with shaft
Rewinder with shaft
Number shafts : 2
Thickness range (microns) : 12-250
Speed (m/min) 500 m/min
Brake type With magnet
Knife type (circular, razor, scissor) : Razor
Slitting Width (mm) 35-130
Unwinder Roll Core Diameter 75 mm
Rewinder Roll Core Diameter 75 mm
Rewinder Tension (kN) 0-1000
Pressure 6 Bar
Control system
Voltage : 3X380V
Frequency 50 HZ
Installed Power 55 Kw
