Timson T32

Equipment:

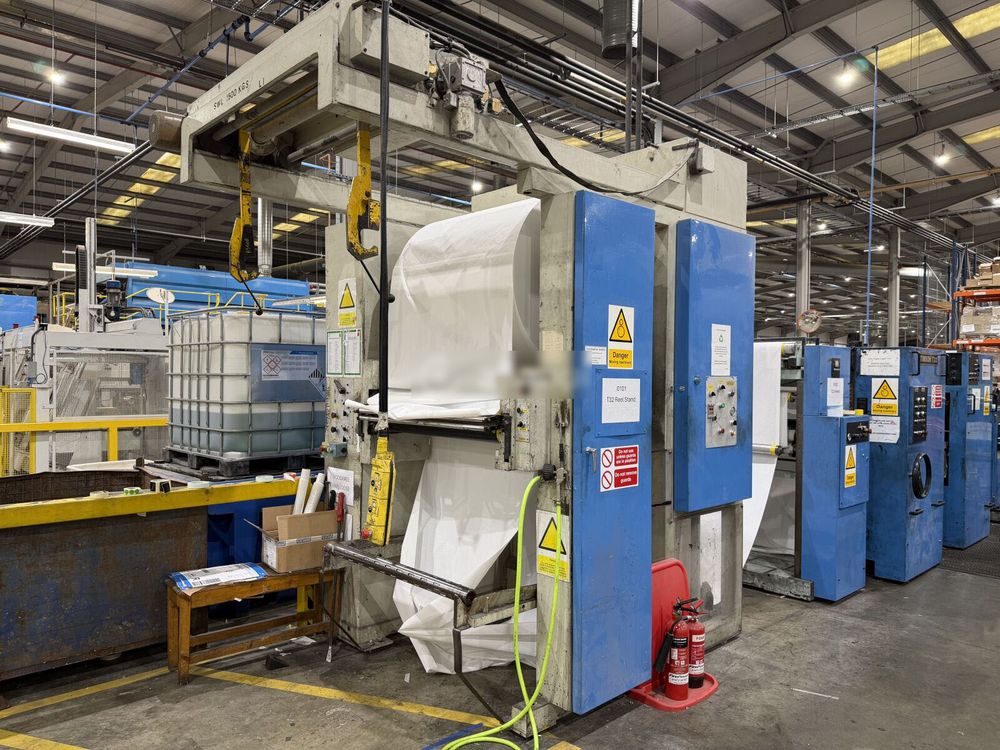

Reelstand:
Manufacturer: MEG
Type: Manual reelstand with hoist
Maximum Reel Diameter: 1,270 mm / 50 in

Infeed Section:
Web Guide: E+L web guide system
Infeed: Timson T32 integrated infeed unit

Printing Unit:
Configuration: 1 blanket-to-blanket printing unit (1+1 perfecting)
Printing Method: Coldset offset
Inking System: Rack-back design with lever ink duct setting
Ink Wash-up: Semi-automatic

Dampening System:
Water Preparation: Technotrans alpha.r (reverse osmosis)
Dampening Supply: Technotrans mixing and recirculation unit

Slitting and Web Handling:
Draw Unit: Integrated draw, slitting and angle bar unit
Ribbon Draw: Individual ribbon draw unit
Maximum Ribbons: 4 ribbons from single web
Registration System: PressTech Autotron 2000 ribbon register

Folder:
Model: Timson M5C
Type: Double parallel cross-grain folder (fixed circumference)
Cut-off: Half cylinder circumference (641.35 mm)
Operating Modes: Collect 2 or non-collect
Page Configurations: 2 × 16pp, 2 × 32pp (joined pair) or 1 × 64pp (single)
On-the-Run Adjustment: First and second fold
Binder's Lip: 9 mm / 0.354 in (second cross fold)

Stacking and Palletising:
Log Stacker: Civiemme ST420/100 SX (c. 2004)
Palletiser: Civiemme PL86 (c. 2004)

Control System:
Main Console: Timson main control console

Auxiliaries:
Plate Bender: Timson manual plate bender
Chiller: External chiller unit

Possible Signatures (trimmed) :
Width (mm) Spine (mm) Fold Ribbons Ribbon Width (mm) Web Width (mm) Collect Pages Type
156 234 DP SG 2 480 960 2 32 Joined Pair
156 234 DP SG 2 480 960 — 2 × 16 Joined Pair
156 248 DP SG 2 508 1,016 2 32 Joined Pair, Tie Slit
156 234 DP SG 4 240 960 2 64 Single
156 234 DP SG 4 240 960 — 2 × 32 Single

DP SG = Double Parallel Short Grain (cross-grain)
Technical Details :
Parameter Value
Maximum Speed ~16,000 copies/hour (A4 format)
Printing Cylinder Circumference 1,282.7 mm / 50.5 in
Cut-off Length 641.35 mm / 25.25 in (2 cuts around)
Maximum Web Width 1,016 mm / 40 in
Maximum Print Width 1,003 mm / 39.5 in
Maximum Ribbon Width 508 mm / 20 in
Maximum Number of Ribbons 4
Paper Weight Range 28–130 g/m²
Paper Thickness Range 0.051–0.178 mm / 0.002–0.007 in
Maximum Signature Thickness 3 mm / 0.120 in
Non-Print Gap 12 mm / 0.47 in
Power Requirements 415 V / 50 Hz / 3-phase
