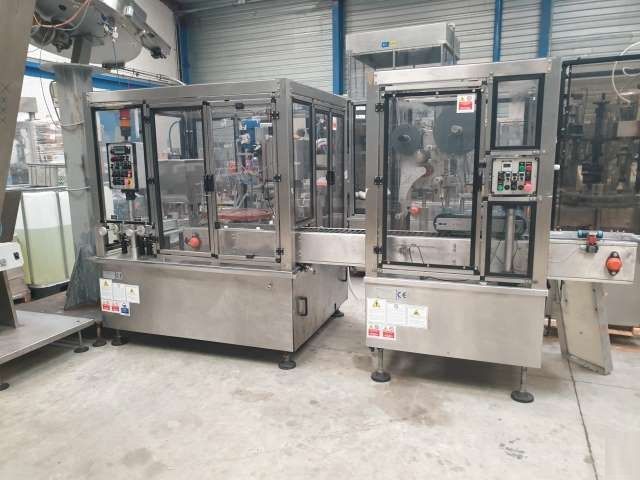

TIRELLI MONOBLOC, Filler -screwer-labeler for bottles

Weight : 2000 kg
Dimensions : (L x W x H) 3.50 x 1.50 x 1.90 M

Equipment :
Can/bottle elevator :
- Loading hatch 0.90 x 0.60 m
- Length 3.90 m lug conveyor
- Conveyor width 250 mm
- Height of a cleat 40 mm
- Center 150 mm
- Overall dimensions: 2.50 x 1.00 x 3.60 m

Mechanical bowl for can/bottle :
- Overall dimensions : 1.20 x 1.20 x 3.00 m

Rotary filler with :
- 20-pockets station
- Current equipment: height 80mm and dimater 30mm
- 3 filling stations from 10 to 350 ml
- "Endress thauser" type 4x filling system
- Ramp for cap
- Currently without vibrating bowl for cap
- Possibility of providing a vibrating bowl
- Screwing head with mechanically adjustable clutch
- The can/bottle is layed on a roller conveyor at the tray exit
- Labeling station by banding for can/round bottle on the outlet conveyor

Max production rate : 60 rpm
380V
6.5 bar
IP55
