Titan 57/65 Maximum turning height 39.37"

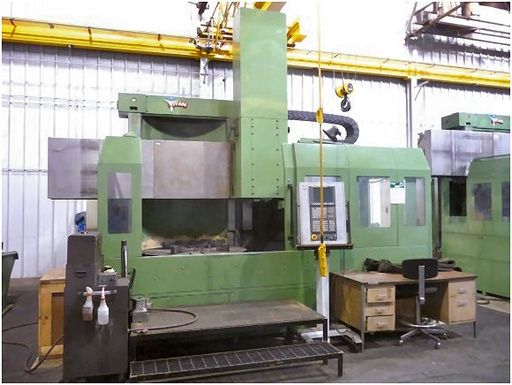

57" TITAN 57/65

FANUC OITC CNC control
12-station automatic toolchanger
57" 4-jaw independent chuck
Fanuc servo motors and drives
Cast iron construction
Crossed roller table bearing
Vertical drive motor through ZF German gearbox
Heidenhain measuring system (scales and encoders)
Precision ball screws

Full enclosure splash guards
Coolant system
Foundation leveling system
Lubricating system
Chip conveyor
Steel sliding way covers on cross rail
50 hp/60 hp Fanuc table drive motor
Table diameter 57.08"
Maximum turning diameter 65"

Maximum turning height 39.37"
Cross rail vertical travel 27"
Ram vertical travel Z-axis 39.37"
Ram horizontal travel X-axis 59"
Ram cross section 10" x 10"
Table speeds 1 - 250 RPM
Number of geared ranges 2
Table load capacity 17,600 lbs
Maximum torque at table diameter 4,800 lbs-ft
Cutting force 1,826 lbs
Cutting feeds X/Z axes 0.039 - 236 IPM
Rapid traverse rate X/Z axes 236 IPM
Cross rail elevation 16 IPM

Power source 80 KVA
Machine dimensions (W x D x H) 177" x 126" x 185"
Approximate machine weight 43,230 lbs
