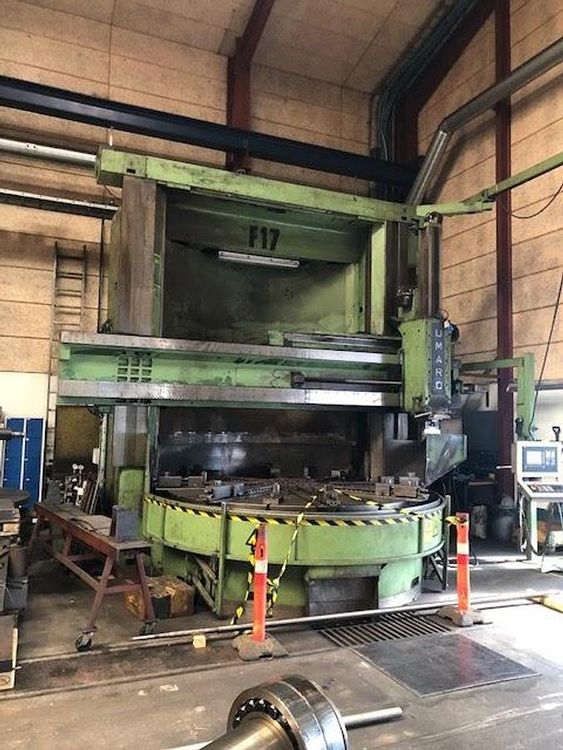

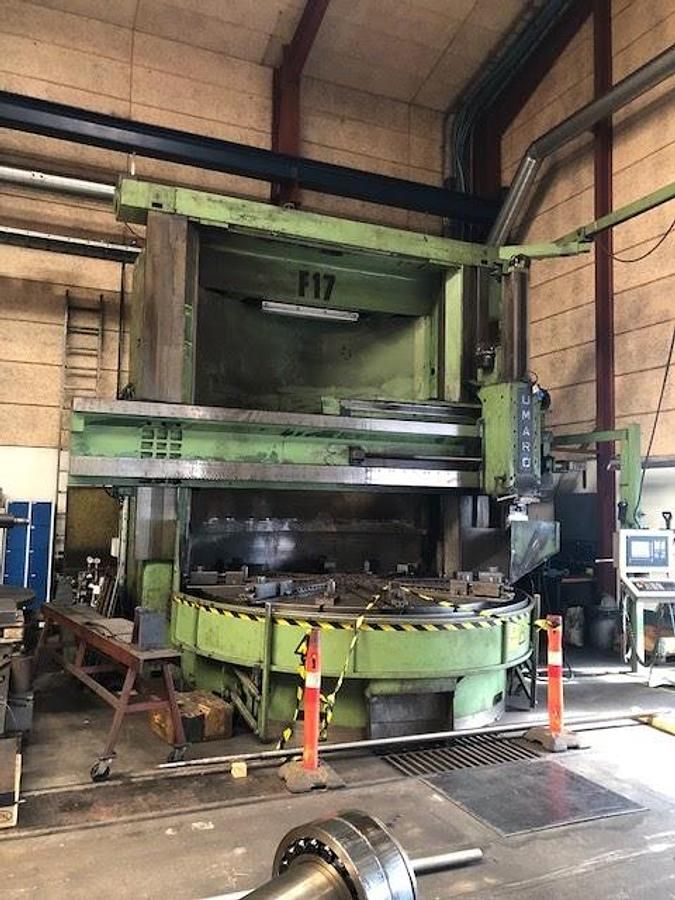

Titan Umaro SC33 Maximum turning diameter 3300 mm

Ref : 2764862-3-GO

Condition : Used

Manufacturer : Titan

Model : Umaro SC33

Short Description : Maximum turning diameter 3300 mm

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Table diameter 3000 mm
Maximum height of workpiece 2270 mm
Max ram travel 1250 mm
Size of ram 224 × 224 mm
Number of steps of the gearbox 3
Working feed range 0.05–5 mm/rev
Rapid traverse 2500 mm/min
Main motor power 55 kW
Maximum table load 18000 kg
Dimensions 5760 × 6282 × 6500 mm
Weight 48000 kg
Retrofitted 2011 – Siemens 84D Control
