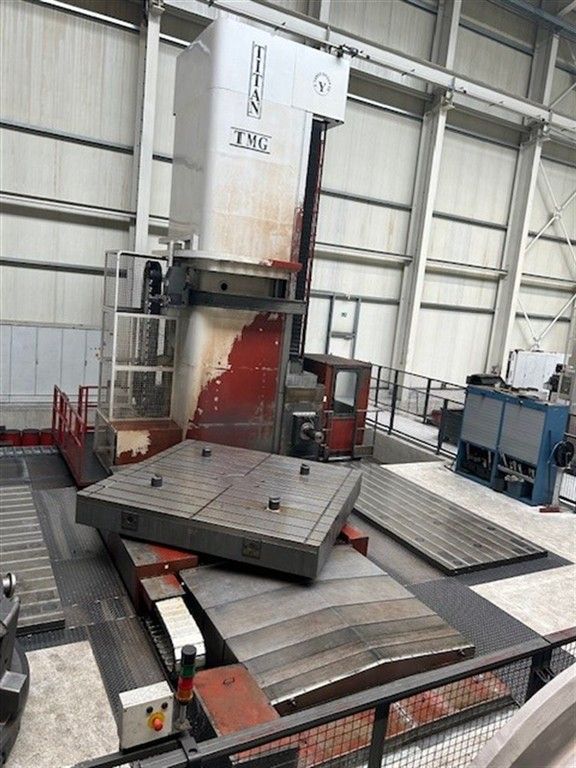

Titan (PAMA) AFP 200 CNC 200 mm 2000 rpm

X-travel 10000 mm
Y-travel 4000 mm
Z-axis 1500 mm
W-axis (spindle longitudinal) 1000 mm
V-axis 2500 mm
Rotary table 3000 x 3000 mm, max load 60 t
Control CNC SIEMENS 840 D
Control HEIDENHAIN iTNC 530
Hydrostatic guideways X and Y axis
Automatic toolchanger 40 pockets
Automatic pickup station for angular milling head
Automatic pickup station for universal milling head
Automatic pickup station for spindle support bearing
Automatic pickup station for facing head
Measuring probe
Chip conveyor
Coolant attachment
Spindle diameter 200 mm
Spindle turning speed range 1–2000 rpm
Ram dimension 600 x 530 mm
Spindle taper ISO 60/50
Rapid motion X-axis 8000 mm/min
Rapid motion Y-axis 8000 mm/min
Rapid traverse Z-axis 5 m/min
Total power requirement 120 kW
Machine weight approx. 135 t
Machine dimensions approx. 16.0 x 5.0 x 10.0 m
