Tongjia 25IN25 Extruder

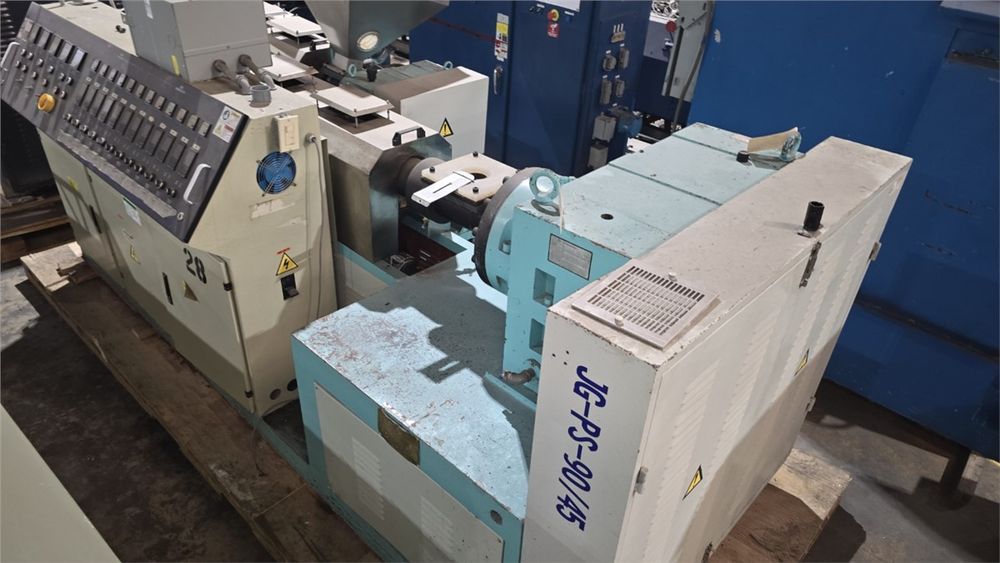

90mm Shangdong Tongjia JG/PS90/45 Extruder, 28:1 L/D, 50 HP
2 Downstream Zones, 5 Barrel Zones, Air Cooled
50 HP Siemens BEIDE Three Phase Asynchronous Inverter Duty Motor
Model TYB1002 2CC2 9 0AA5 Z 250M IM B3
1176 RPM
Rated Torque: 300 Nm
Constant Torque Operating Range: 30 - 60 Hz
Variable Torque Operating Range: 5 - 30 Hz
Rated Current 64 A @ 60 Hz
Thermal Class F
IP54 Enclosure
Ceramic Band Heaters With Independent Digital Zone Temp Controllers
Integrated Control Panel With Extruder Screw Speed Pot,
Start/Stop Controls
Integrated Optional Downstream Controls For A Puller Downstream,
Optional Start/Stop Vacuum Controls, Auxiliary Start/Stop, E-Stop
Analog Amp And Speed Gauges For Extruder & Puller,
Analog Amp Gauge For Auxiliary
460/3/60
