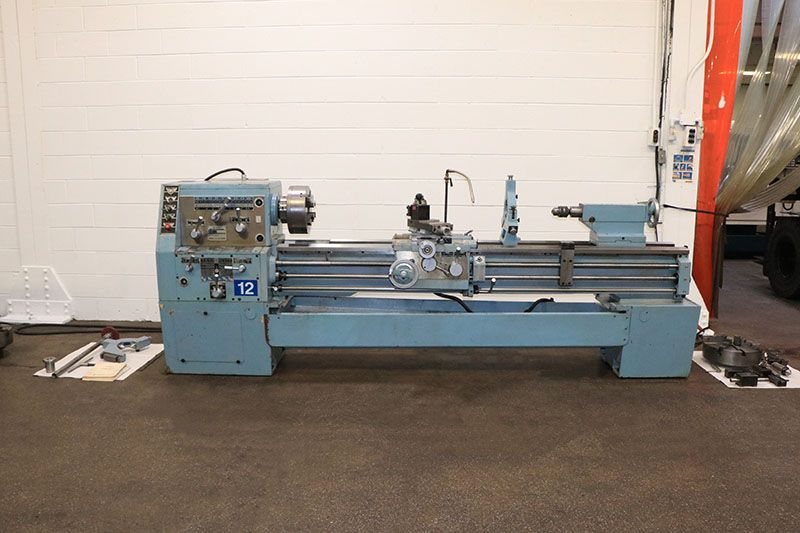

Toolmex Engine Lathe 1,600 RPM TUG-40

Distance Between Centers 80"
Swing Over Bed 17-3/4"
Swing In Removable Gap 26"
Swing Over Cross Slide 10"
Spindle Bore 2-1/16"
Spindle Speed Range (14 Speeds) 18 To 1,600 RPM
Main Motor 7.5 HP
Spindle Nose D1-6 Camlock
Inch Threads 3/4 To 56 TPI
Metric Threads .5 To 28 mm
Longitudinal Feed Range 0.0017 To 0.126 IPR
Cross Feed Range 0.0008 To 0.063 IPR
Newall Two Axis Digital Readout
Taper Turning Attachment
Steady Rest
Follow Rest
4-Jaw Chuck
5C Collet Closer
Aloris Model: CA Quick Change Tool Post
Thread Dial Indicator
Drill Chuck For Tailstock
Live Center For Tailstock
Tailstock Spindle Diameter 3"
Tailstock Center #5 MT
Quill Travel 7"
Hardened & Ground Bedways
Bed Width 13-3/8"
Inch & Metric Threading Capability
Shipping Dimensions 136" X 38" X 52"
Approximate Weight 5,500 LBS
