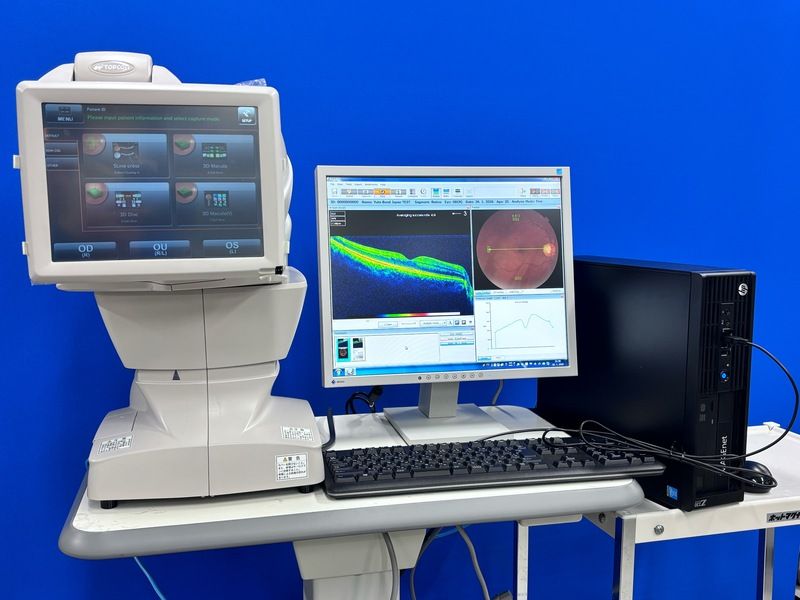

Topcon 3D OCT 1 / Maestro 1

OCT fundus tomography images and color/red-free (digital) fundus images c
an be captured with a single unit. Automatic alignment allows for easy and
fast image capture. A basic analysis application is included, which is useful for
diagnosing glaucoma and macular disease. (Normative database included)
Equipped with a touch panel display and a GUI design optimized for the workflow used,
it enables easy image capture. The screen can be flexibly rotated,
allowing imaging operations to be performed from various positions and
providing better patient support during imaging.
It also provides greater freedom in installation location.

Specifications & Options
Scanning range (on fundus): Horizontal 3 to 12 mm, Vertical 3 to 9 mm,
Scan pattern: 3D scanning (horizontal/vertical),
Linear scanning (Line scan/Cross scan/Radial scan),
Scanning speed: 50,000 A-scans per second,
Imageable pupil diameter: φ2.5 mm or more.

Configuration
Body dimensions: 307-442 mm (Width) x 472-668 mm (Depth) x 518-722 mm (Height).
Weight: 21.0 kg HA-1 (fundus imaging adapter). Fixation lamp not included.

Condition:
Patient ready. ***Signal strength: 7-10/10.
