Topcon 3D OCT-1 Maestro Optical Coherence Tomography

System unites a high profile color nonmydriatic retinal camera with
the hottest spectral domain OCT technology.
The rotating touch panel and fully automated (alignment, focus, and catch)
performance make the 3D OCT-1 Maestro the diagnostic alternative to
even the tiniest clinical practice, according to a company news release..

Excellent condition 2017 Topcon 3D OCT-1 Maestro, Table, Color printer,
Manuals, ready to work and alll items are sold in as-is condition
with 12 month warranty.

Topcon 3D OCT-1 Maestro Optical Coherence Tomography Features:
Fully automated and easy operation - single touch of the pupil on
the capture screen, scans the left and right eye, will produce a OCT
scan and a true color fundus image simultaneously
Flexible operating - rotable 10 inch touch screen
Wide field OCT scan - 12mm x 9mm OCT wide field scan. Provides topography of the optic nerve and macula in one scan
True color fundus image
Various analysis functions - optic disc analysis, 3D macula analysis,
12mm 3D wide scan

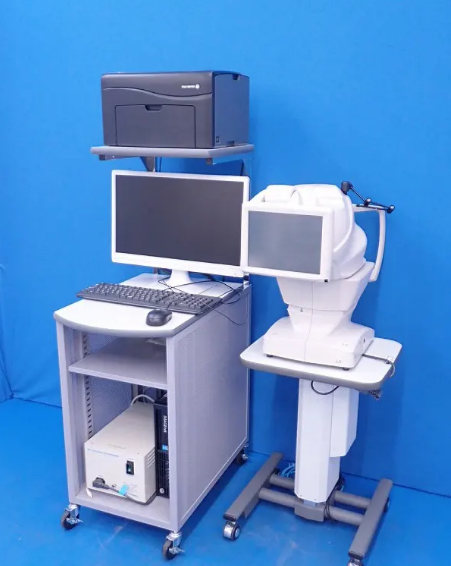

This Topcon 3D OCT-1 Maestro Optical Coherence Tomography sale includes everything and ready to work:

Topcon 3D OCT-1 Maestro
Optical stand
Printer
Monitor
Rack
Sold in as-is condition with 12 month warranty.

TOPCON 3D OCT-1 Maestro Manufacturer Technical data
Observation & Photography of Fundus Image
Scan Mode: Color, Red-free*
Picture Angle: 45°/30° or equivalent (digital zoom)
Operating Distance:
34.8mm (in fundus photography)
62.6mm(in anterior segment photography**)
Photographable
Diameter of Pupil:
45°: φ4.0mm or more
Small pupil diameter: φ3.3mm or more

Observation & photographing of the fundus/anterior segment tomogram
Scan Range (on fundus):
Horizontal direction 3 ~ 12mm
Vertical direction 3 ~ 9mm

Scan Range (on cornea):
Horizontal direction 3 ~ 6mm
Vertical direction 3 ~ 6mm

Scan Speed: 50,000 A-Scans per second
Lateral Resolution: 20μm
In-depth Resolution: 6μm
Photographable diameter of Pupil: φ2.5mm or more
Internal Fixation Target: Dot matrix type organic EL
(The display position can be changed and adjusted.
The presenting method can be changed.)

Electric Rating
Source Voltage: AC 100-240V
Power Input: 70-150VA
Frequency: 50Hz-60Hz

Dimensions and Weight
Dimensions: 307-442mm (W) × 472-668mm (D) × 518-722mm (H)
Weight: 21kg
