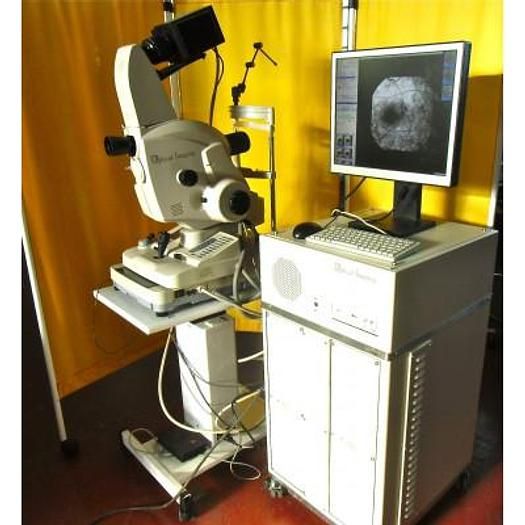

Topcon TRC-50DX

Topcon trc-50dx digital retinal imaging system with
pc and rfi 3000 software, in perfect 2010 condition
analysis of blood flow and velocity in retinal vessels
multi-spectral analysis, oximetry module, retinal metabolism
fluorescent / color and icg
computer
software
odian suite: blood flow analysis (rfi 3000 and rfi 3006),
functional analysis (rfi 3006), oximetry (rfi 3006)
cpu 3ghz, intel dual-core processor
ram 2gb
storage capacity 400gb
camera imaging
sensor size 12.3mm x 12.3mm
sensor resolution 1024 x 1024 pixels
acquisition rate up to 100 fps at 512 x 512 pixels
photographic magnification 50 (1.1x), 35(1.6x), 20(2.7x)
illumination
number of flashes 8
stroboscopic xenon light source for photography
maximum flash frequency 100hz
interval between series 10 sec
number of filters 8
filter switching frequency 30ms
optical imaging
camera type topcon trc-50dx
variable field of view 50°, 35°, 20
magnification 50 (10x), 35(13.3x), 20(23.3x)
working distance 38 mm
diopter compensation range -10 to +41 diopters
minimum pupillary diameter 6 mm
external fixation point red light, flash
