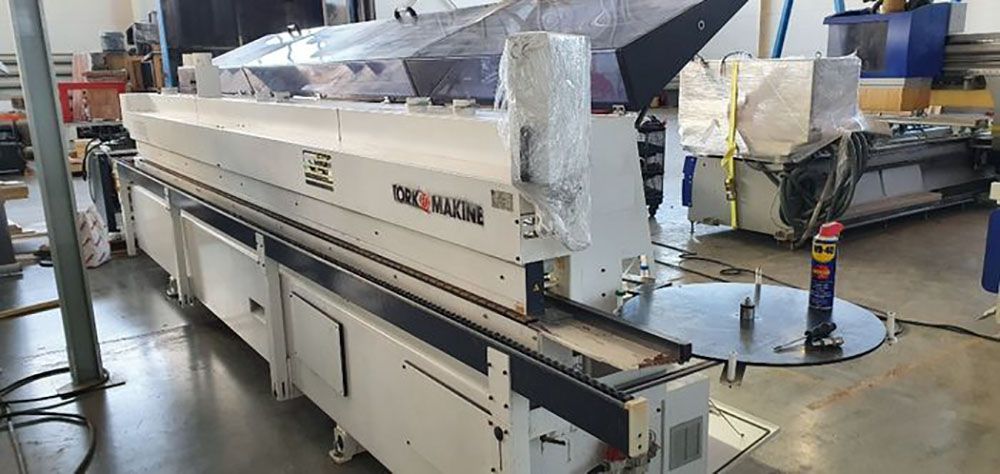

Tork Novoband 9 OGS

The machine can automatically and with high precision glue PVC, ABS, melamine edges,
working with edges with a thickness of 0.40 to 3 mm and solid edging up to 5 mm.
The glue tank with a capacity of 3 liters reaches the set temperature in 8-9 minutes.
The machine has a high level of safety for the operator and guarantees high quality.
The machine glues the edge at a speed of 20 m / min.

Description:
• Edge banding machine Novaband includes the following units:
• Anti-adhesive spray device
• Jointing unit
• Edge overhang trimming device
• Rough overhang milling device
• Rounding device (round)
• Scraping unit
• Glue scrapers
• Polishing brush unit
• Grooving unit 0-90 °

Control of all machine units on the touch screen of the operator panel with automatic transition from thin to thick edge.
Automatic independent control of encoders with DC motors from the control panel: stop ruler at the entrance to the machine,
side clamp with pressure rollers, planing unit, milling unit for removing overhangs.
