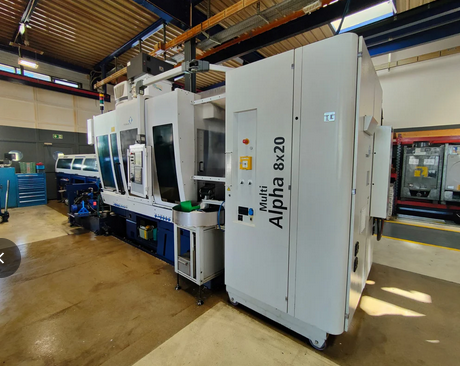

Tornos FANUC 30i-MODEL A 8000 rpm Multi Alpha - 8x20 4 Axis

X-Axis Travel: 80 mm
Y-Axis Travel (Cross way): 50 mm
C-Axis: 360°
B-Axis: -5°/+110°

Control: FANUC 30i-MODEL A
Bar Capacity: Ø22 mm
Workpiece Maximum Length: 100 mm
Number of Axes: 37
Number of Spindles: 8
Number of Back Spindles: 2
Number of Cross Slides: 6
Number of Longitudinal Slides: 8
Spindle Speed: 0–8000 rpm
Back Spindle Speed: 8000 rpm
Voltage: 3x 400 V, 50 Hz
Spindle Power: 11.2 kW
Machine Weight: 12,000 kg
Machine Dimensions Length: 9104 mm
Machine Dimensions Width: 1740 mm
Machine Dimensions Height: 2625 mm
Accessories: Automatic bar loader
Accessories: Coolant system
Accessories: Chip conveyor
Accessories: Spindle cooling
Accessories: Lamp
Accessories: Fire extinguishing system Kraft Bauer
