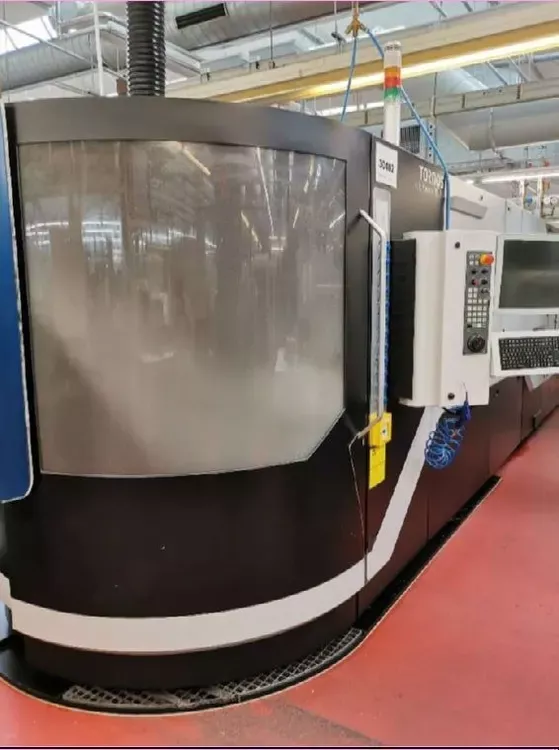

Tornos MultiSwiss 8x26 8,000 1/min

CNC Multi-Spindle Screw Machine
8-Spindle machine
Operating hours approx. 10,000 h
Bar capacity 8–26 mm
Cross slide on all layers
Parts pre-drawing device
2 Driven tools
Counter spindle
Backworking 1 rigid / 1 driven
2 80 bar HD pumps additionally
Chip conveyor Knoll
Automatic bar loading magazine (single loader)
Max workpiece length 65 mm
Max remnant length 140 mm
Drum switching times 0.48 sec
Max spindle speed 8,000 1/min
Power of spindles 11 kW
Torque of spindles 17/24 Nm
Max speed of counter spindles 8,000 1/min
Power of counter spindle motor 11 kW
Torque of counter spindle motor 12/15.5 Nm
Stroke of spindle, Z direction 75 mm
Stroke of counter spindle, Z-axis 150 mm
Number of linear axes 18
Number of Y-axes 0
Number of rotary axes (C axis) 8+1
Number of cross slides in main machining 7+1 (cut)
X-stroke of cross slides in main machining operation 80 mm
X-stroke of cross slides in main machining with Y-axis 55 mm
Y-stroke of cross slides in main machining operation 33 mm
Stroke of cross slides in X-axis in counter operation 170 mm
Z-stroke of cross slides in counter operation 150 mm
Max number of tools 31
Max number of tools in counter operation 4
Max number of tools of driven tools in counter operation 2
Spindle cooling with oil
Cutting oil filtration 50 µm
Cutting oil volume 2000 l
Standard cutting oil pump outlet pressure 4.50 bar, flow rate 140 l/min
High pressure pump outlet pressure 80 bar, flow rate 36 l/min
Max length 9000 mm
Max width 2260 mm
Max height 2160 mm
Weight 15,000 kg
Installed power 140 kW
Numerical control Fanuc
Programming system TB-DECO ADV
