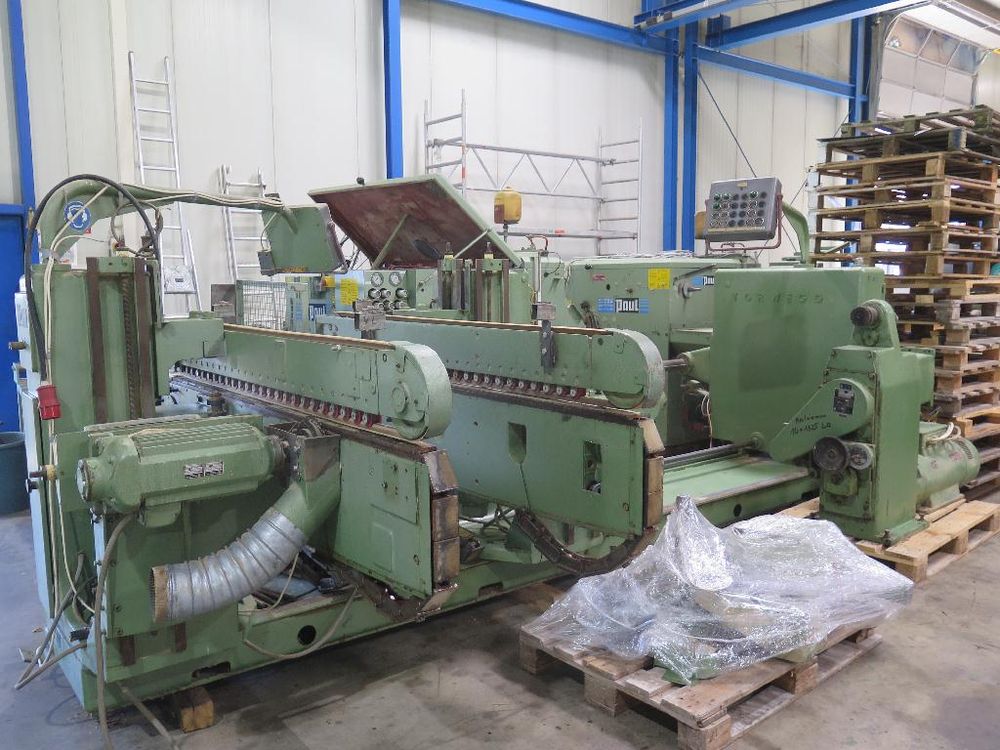

Torwegge Double-End Tenoner

Ref : 2729261-15-MT

Condition : Used

Manufacturer : Torwegge

Model : -

Short Description : Double-End Tenoner

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Working width 2600 mm
2 units per side:
1 hogger 3.7 kW at 50 Hz/5.5 kW at 100 Hz
1 milling spindle 5.5 kW
Spindle diameter 35 mm, approx. spindle length 80 mm
All units are pivoting and adjustable in width and height
1 pivoting control panel per side
Handheld control unit for forward and reverse travel
Conveyor chain with retractable cams, cam spacing 615 mm
Overhang of the lower conveyor chain 460 mm, including table supports 880 mm
Complete with Himmelreich converter 2390 rpm at 50 Hz, 3000 rpm. at 100 Hz

Transport dimensions:
Machine: L 4300 mm x W 2200 mm x H 1900 mm
Converter stands on a Euro pallet L 1200 x W 800 x H 1000 mm
Accessories on a Euro pallet L 1200 x W 800 x H 1000 mm
