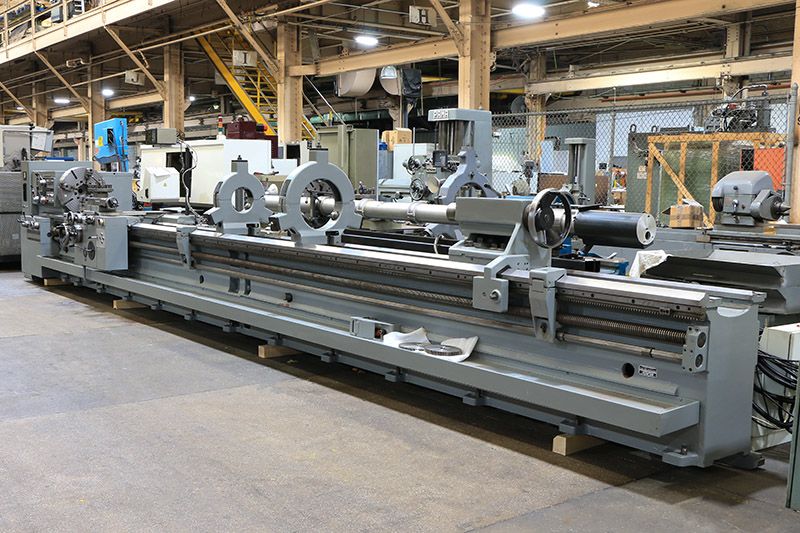

TOS Engine Lathe 1120 RPM (22 steps) SUS-63 Engine Lathe

Swing Over Bed Ways 25.8"
Swing Over Cross Slide 15.4"
Distance Between Centers 320"
Hole Through Spindle 3.3"
Bed Width 23"

Spindle Speed Range 9–1120 RPM (22 steps)
Longitudinal Feed Range 0.002"–0.12 IPR
Longitudinal Feed (with countershaft) 0.004"–0.94 IPR
Cross Feed Half of longitudinal setting
Inch Threading Range 1/4–56 TPI (48)
Metric Threading Range 0.5–224 mm (40)

Tailstock Spindle Travel 11"
Tailstock Spindle Taper 6 MT

Approximate Weight 26,000 lb
Dimensions 390" x 74" x 60"

25 HP Main Motor

Sony 2-axis digital readout system
Taper turning attachment
Rapid traverse
23.5" 4-jaw chuck
4-way turret toolpost
15" roller steady rest
8.5" roller steady rest
Coolant system
Hardened and ground bed ways
Inch and metric threading
