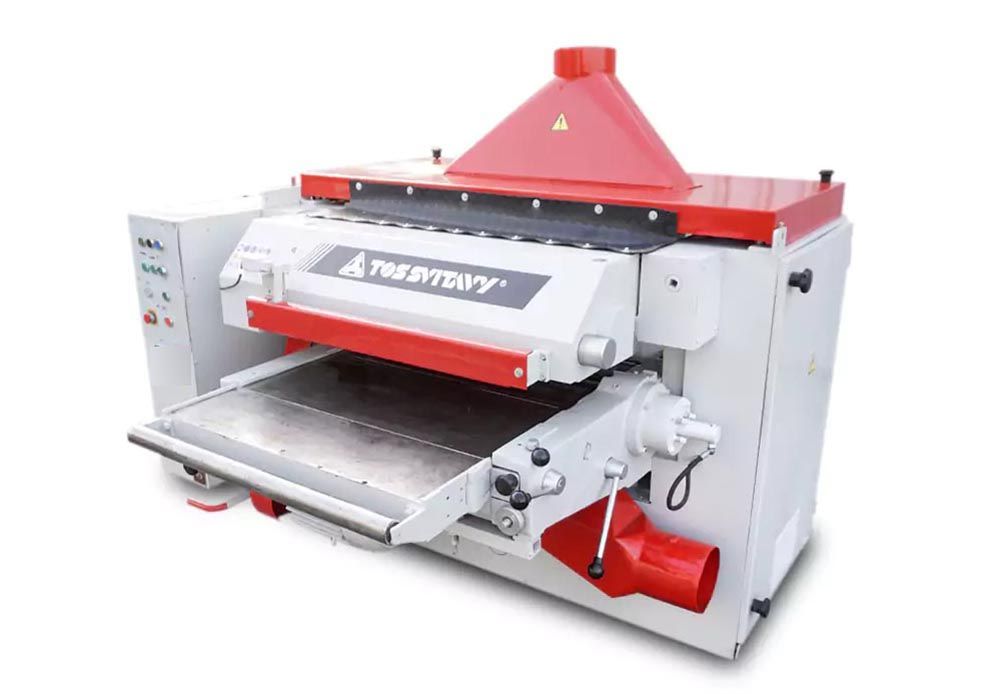

TOS SVITAVY 80

Used planer
Max width of the workpiece 800 mm
max thickness of the workpiece 160 mm
in advance:
slip roller smooth +
pawl +
a pulling, toothed, divided shaft (segmented, sequential) enables simultaneous planing of several elements +
2 rows of pressure +
pulling, toothed, divided shaft (segmented, sequential) +
pressure +
planing shaft 810mm, 4 knives, 18,5kW
pressure +
smooth, metal pulling shaft +
from down:
adjustable pre-table with skid roller +
sliding roller +
planing shaft 810mm, 4 knives, approx. 10kW
2 smooth, metal, adjustable pulling rollers +
metal roller, slip +
electric table top lifting +
Smooth feed speed regulation 7-40m / min
engine approx. 2,2kW
diameter of the extraction nozzle 200mm, 180mm
dimensions length / width / height 1950x2100x1700mm
weight around 2500kg
