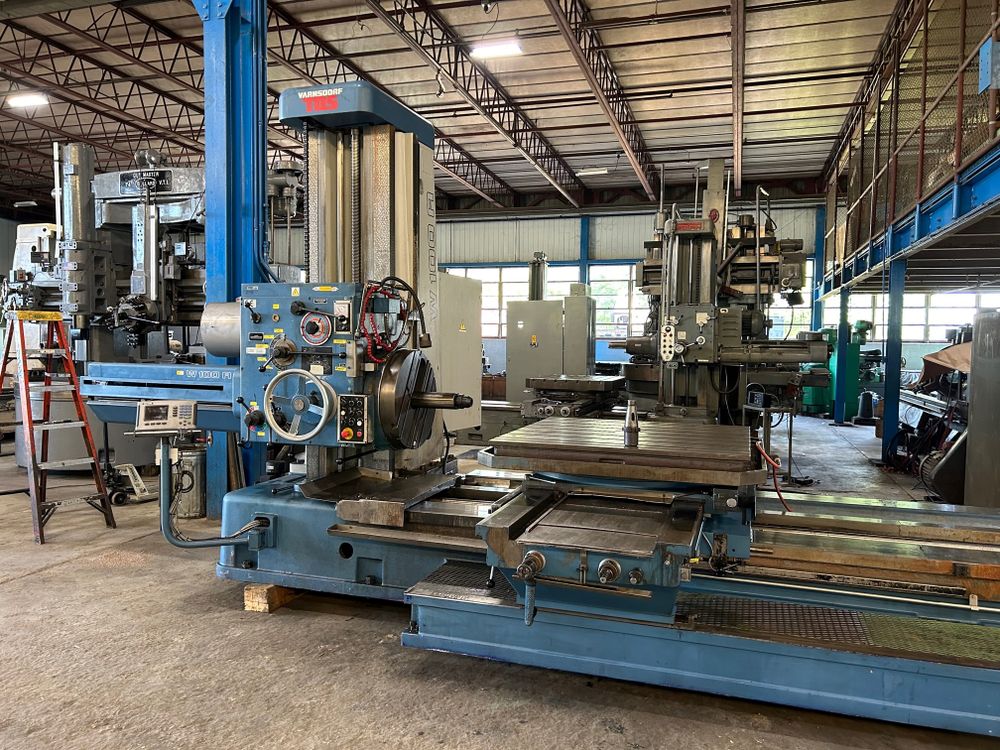

TOS W100A 4 in 1120 RPM

Spindle diameter 4 in
Spindle taper #50
Spindle travel 35.5 in
Table size 49 × 49 in
Table cross travel 63 in
Max spindle-to-table distance 44 in
Saddle travel 49 in
Spindle speeds (23) 7.1–1120 RPM
Facing head speeds (16) 7.1–224 RPM
Boring feed range (32) 0.0008–0.47 IPR
Milling feed range (18) 0.7–35.4 IPM
Rotary table feed range (18) 0.98–55 IPM
Rapid traverse 110 IPM
Max workpiece weight 6600 lbs
Machine weight 34000 lbs
Power drawbar Equipped
4-axis digital readout Acu-Rite
Rotary table Equipped
Facing head 23.5 in continuous feed
Threading Inch/Metric capability
Bed and table ways Hardened and ground
Main motor 15 HP
