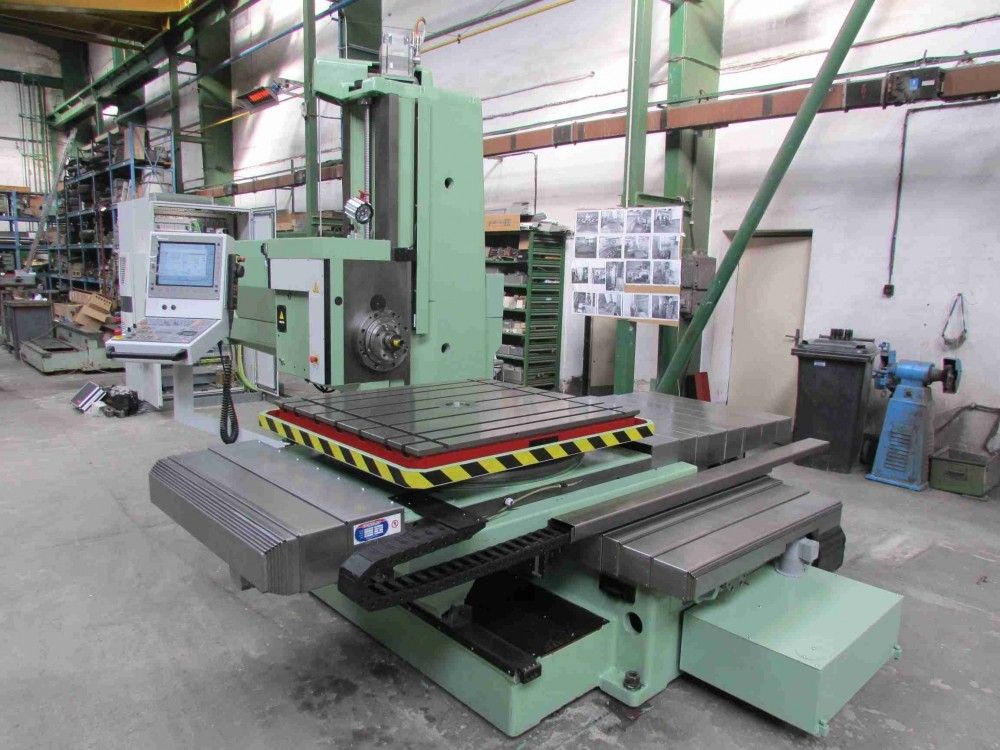

TOS WH 10 CNC 100 mm 1250 rpm

Ref : 2739335-3-GO

Condition : Used

Manufacturer : TOS

Model : WH 10 CNC

Spindle Size : 100 mm

Spindle Speed : 1250 rpm

Year(s) : 1980

Quantity : 1

Location : Seller or machines location:
EUROPE (Central and Eastern)

Year of modernization: 2025
X axis travel: 1250 mm
Y axis travel: 1100 mm
Z axis travel: 1000 mm
W axis stroke: 630 mm
Rotary 5 axis with 3D circle interpolation
Control: Heidenhain iTNC 640
New 5 axis Heidenhain DRO (4+3 encoders)
New Siemens drives and motors
New system with hand wheel
New electric cabinet
Ball screws and nuts
Regrinded ways
Spindle diameter: 100 mm
Spindle taper: ISO 50
Spindle torque: 1800 Nm
Spindle motor power: 22 kW
Spindle speed: 16–1250 rpm
Feed range: 4–5000 mm/min
Table size: 1000 x 1120 mm
Table load: 3000 kg
Machine weight: 13400 kg
12 months warranty in EU
