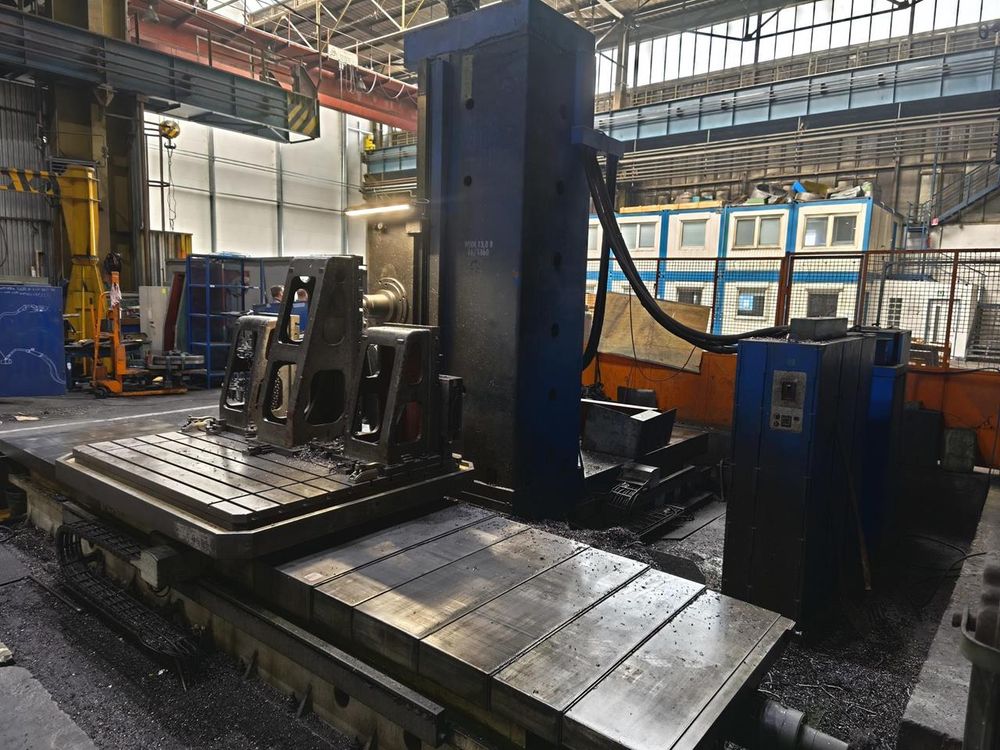

TOS WHN 13.8 B 130 mm Variable Speed
Ref :
2746258-3-CP
Condition :
Used
Manufacturer :
TOS
Model :
WHN 13.8 B
Spindle Size :
130 mm
Spindle Speed :
Variable Speed
Year(s) :
1987
Quantity :
1
Location :
Seller or machines location:
EUROPE (Central and Eastern)
EUROPE (Central and Eastern)
Control system: MEFI CNC 846
Length of the working table: 1800 mm
Width of the working table: 1800 mm
Maximum weight of the grinded workpiece: 12000 kg
X-Axis travels: 3500 mm
Y-Axis travels: 2000 mm
Z-Axis travels: 1250 mm
Spindle diameter: 130 mm
Machine height: 7200 mm
Machine length: 7800 mm
Machine width: 4900 mm
Machine weight: 36000 kg
The machine is after partial GO (reground turret bed for headstock).
