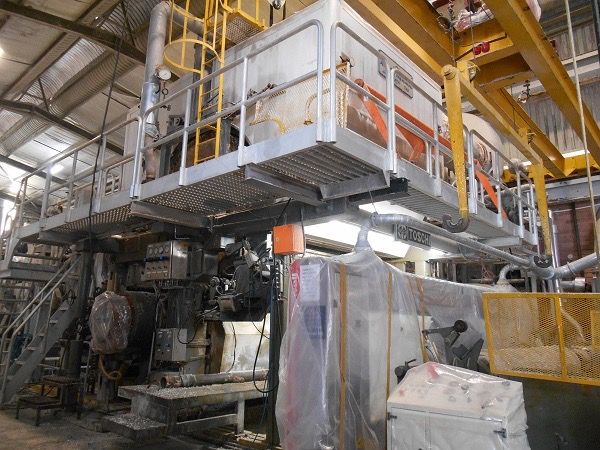

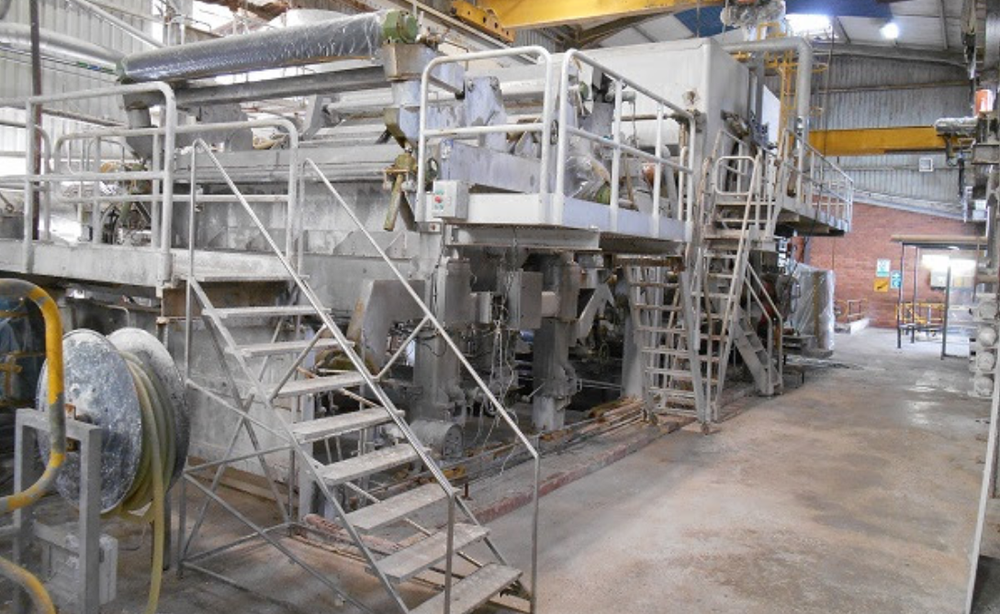

Toscotec complete Crescent former tissue PM incl . deink unit 2650mm trim 14-35gsm 32 TPD

Toscotec 2,650mm trim Crescent former 32 tpd tissue paper machine , 14-35gsm, 600 m/ mn
A superb condition offer where no expenses have been spared..
Machine is 1991 with upgrades:
- the installation of the Crescent former in 1993,
- and Voith stock prep waste with 2003 deink unit ( however, if you do not need that waste option , it is possible virgin pulp stock prep )

Only reason for sale: lack of daily power hours / electricity in the place where it is installed, which simply means there is no way at all that machine can run and generate income.!

Manufacturer - Toscotec ( Italy )
Trimmed width – 2650mm max
Operating speed – 600 m/m upto 17.5gsm / 580m/m on 20.5gsm
Grammage range – 14 to 35gsm
Maximum achievable tonnage per day – 32tons
Yankee diameter and current pressure rating – 2500mm @ 580kPa
Hood – with fan and gas burner,
Vacuum systems – vacuum blower on suction press, NASH 3002 pump on U-box,
Lubrication station,
Boilers – 2 x 4 ton 10 bar gas fired boilers

important note: The Deink cannot be sold alone separate,
only sale is meant together with the Crescent PM

-----------------------------------------------------------------------------------------------------------
OPTIONAL SALE at the mill is the CONVERTING part:

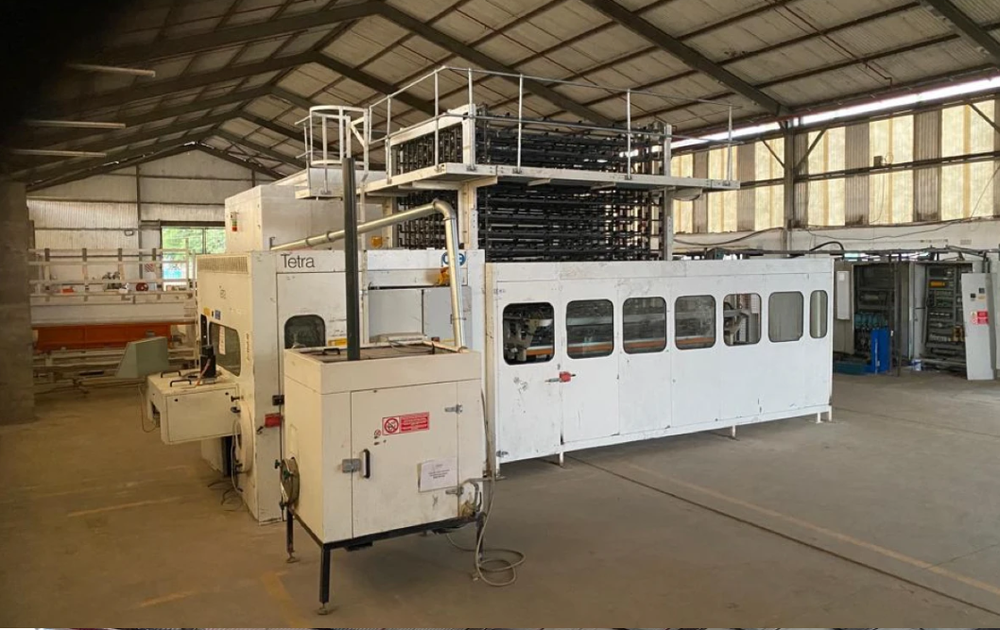

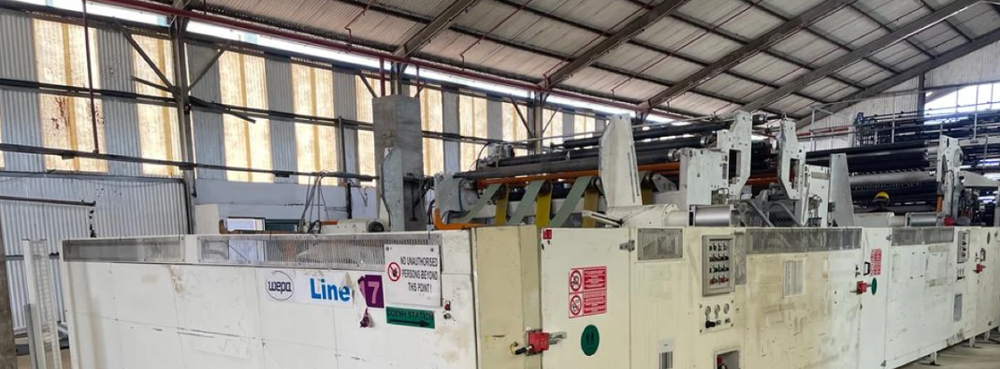

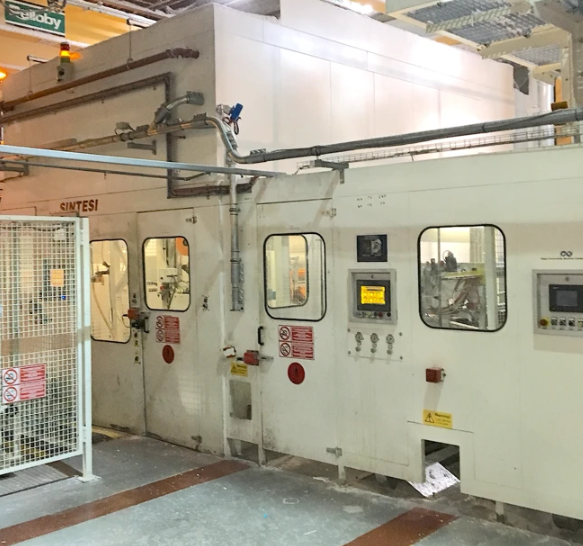

2.750 mm Tissue Rewinder PCMC SINTESI of year 2021 ..

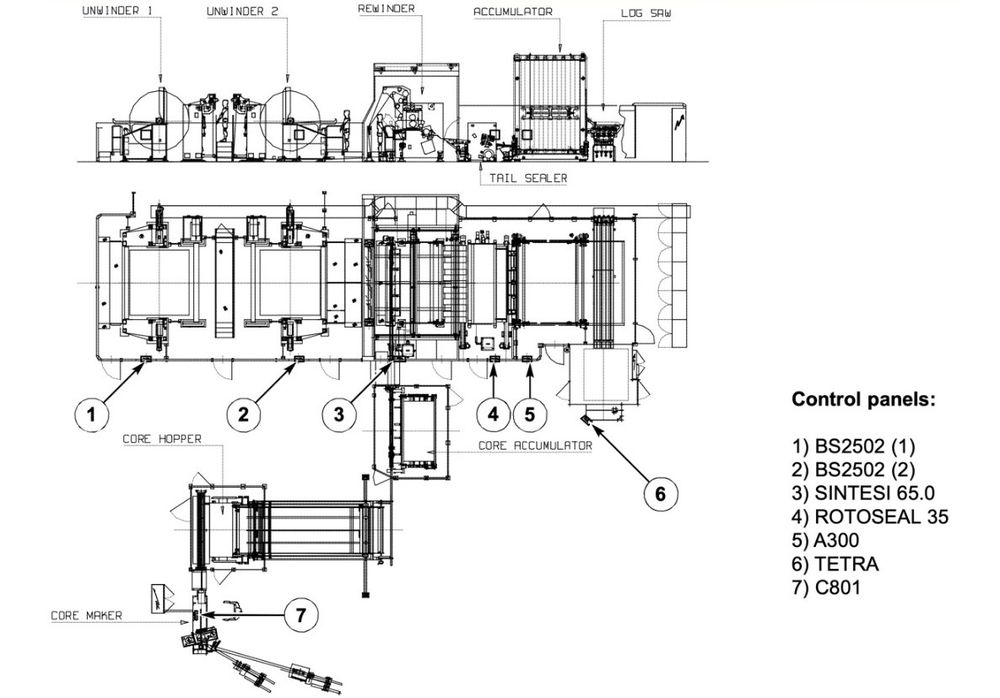

see last 4 pics and diagram.
Specifications below:
Core Maker (Plies): 1
No of Unwind Stands: 2
Product: Bathroom tissue
Speed Flat (M/min: 550
Logs / Min: 30 (@2,750)
Logs / Min: 31 (@2,650)
Min. Log Dia.: 80mm
Max. Log Dia. 160mm
Min Chop: 88mm
Max. Chop: 160mm (KT)
Min Perf. Length: 95mm
Max Perf Length: 800mm
Saw Lanes: 4
Max Speed: 200 cuts/min
Variable Perf: Yes
Max Reel Diameter: 2,500mm

( Important note: exclusive Sales Partnership- hence no quote allowed to dealers, brokers, middlemen possible, sorry...)
