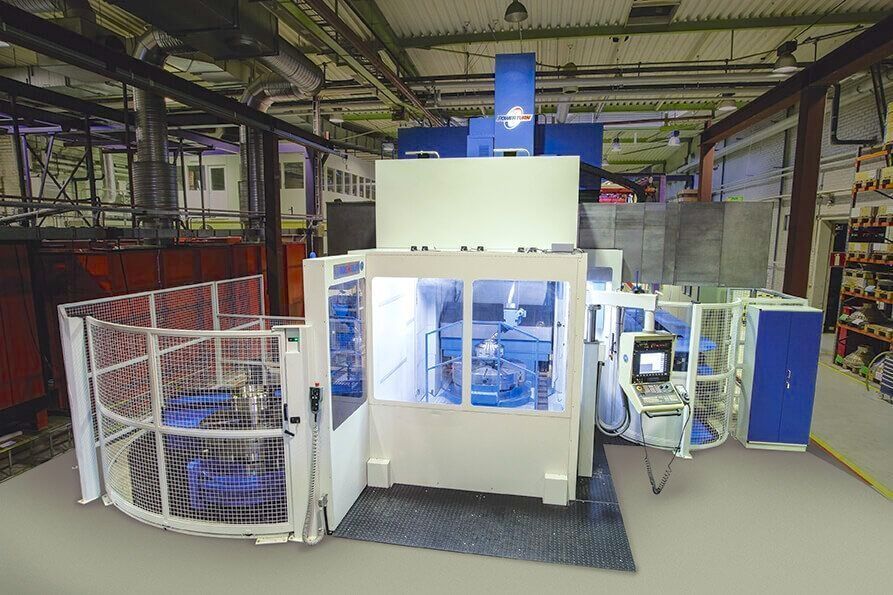

Toshulin POWERTURN 1250 Y CM 2APC Max workpiece diameter 1400 mm

Axis travel Y 1800 (+/-900) mm
Rapid feed Y 12 m/min
Axis travel W 1000 mm
Rapid feed W 0.287 m/min
Axis travel Z 1500 mm
Rapid feed Z 12 m/min
Axis travel X 1000/1850 mm
Rapid feed X 12 m/min
C axis resolution 0.001°
C axis speed 7.4 rpm

Control Siemens 840D
Pallet changer 2 stations ø1250 mm
Pallet capacity 5000 kg

Table diameter 1250 mm
Max turning diameter 1400 mm
Max turning height 1600 mm
Max workpiece weight 5000 kg

Spindle max speed 2–400 rpm
Spindle max power 60 kW
Spindle max torque 16,483 Nm
Table type Röhm self-centering
Table load capacity 5000 kg

Milling spindle power 28 kW
Milling spindle speed 3000 rpm
Milling spindle torque 750 Nm

ATC positions 144
Tool weight max 5 kg
Rotating tool weight CAPTO straight heads 20 kg
Rotating tool weight CAPTO fixed or B-axis 15 kg
Max tool length straight heads 600 mm
Max tool length fixed or B-axis 300 mm
Max tool length D’Andrea drive 180 mm
Max tool diameter 120 mm
Max tool diameter with free adjacent positions 240 mm

Tool magazine stations 4
Pre-installed milling heads 4

Installed power 100 kVA
Machine weight ≈85,000 kg
Machine dimensions 10090 × 9580 × 7150 mm
Ram section 240 × 240 mm
Chip conveyor yes

Accessories
Pallet changer 2 stations ø1250 mm
Automatic B-axis milling head
Vertical milling head
90° milling head
D’Andrea head
Horizontal and vertical turning supports
Numerous tooling
