Toskar EASYFAB-1550-40 40 t

Press force 40 t
Bending length 1550 mm
Distance between columns 1250 mm
Throat depth 295 mm
Stroke 120 mm
Daylight opening 355 mm
Table height 775 mm
Working feed 8.0 mm/sec
Return speed 100.0 mm/sec
Control CYBTOUCH 12
Oil capacity 100 l
Total power 5.5 kW
Machine weight 3250 kg
Machine dimensions (L×W×H) 2.8 × 1.7 / 2.0 × 2.1 m

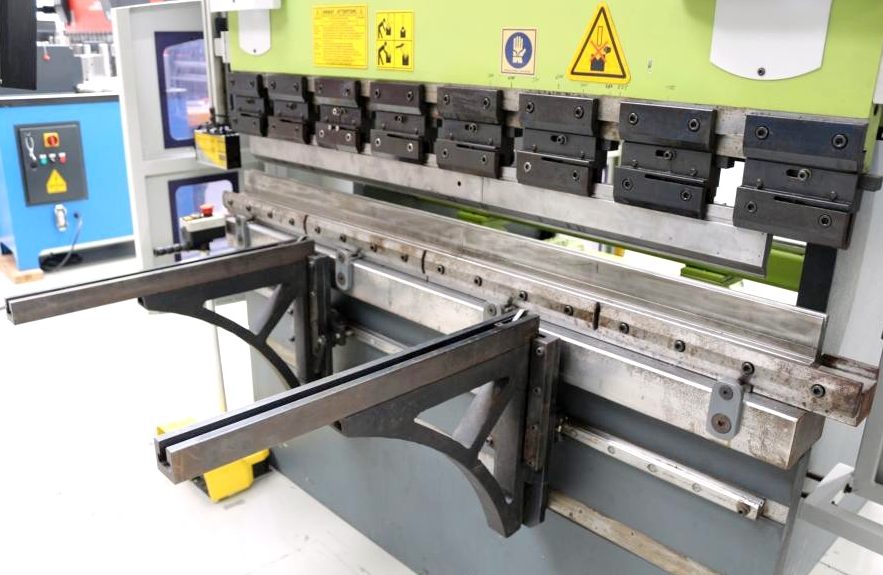

CNC electro-hydraulic press brake
CYBELEC control unit with touchscreen
Touch Profile function
High-resolution display
Tool and product library
USB interface
Pivoting control panel
CNC axes Y1, Y2, X, R
CNC motorized backgauge (X axis)
CNC motorized height adjustment (R axis)
Two adjustable stop fingers
Upper and lower tool holders (AMADA/PROMECAM)
Two front sheet support arms
Foot switch
Side guards with pivoting doors
Rear guards with light barrier
