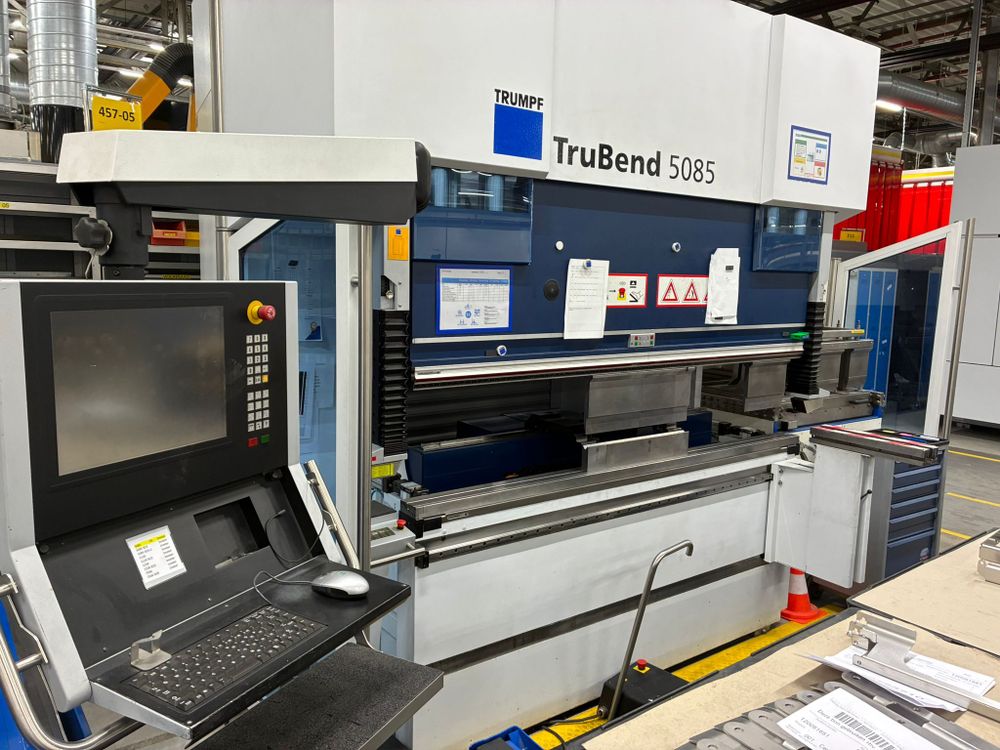

Trumpf TruBend 5085 X (B03) 85 tons

Press force: 85 tons
Bending length: 2210 mm
Stroke: 445 mm
Beam entry: 615 mm
Distance between side frames: 1750 mm
Throat depth: 420 mm
Control: TRUMPF TASC 6000

Features / Equipment:
Stable all-steel machine frame construction
Stress-relieved ram, torsion-resistant
Spherical ram suspension with tilt
Electro-hydraulic downstroking drive with 4-cylinder technology
Block hydraulics with control valves on cylinder
Electronic pressure balance
Measuring system
Control panel with LCD screen
Footswitch with emergency up, down, and stop
Oil cooler
Switch cabinet cooling (air-air heat exchanger)
Modern machine design
Backgauge system 2-axis
2 backgauge fingers
Manual upper tool clamping
Hydraulic lower tool clamping
Manual crowning
Lower tool adjustment
Emergency stop button
Manual roller shutter rear protection
Protective panels
CE certificate
Network connection for machine control
Die space/stroke extension +230 mm
5-axis backgauge system
Hydraulic upper tool clamping
CNC crowning
Safety device BendGuard (220 mm/s)
Additional footswitch
2 front support brackets
Preparation for ACB angle sensor
Optical setup and positioning aid
Work area lighting rear
Work area lighting front
Mobile control
