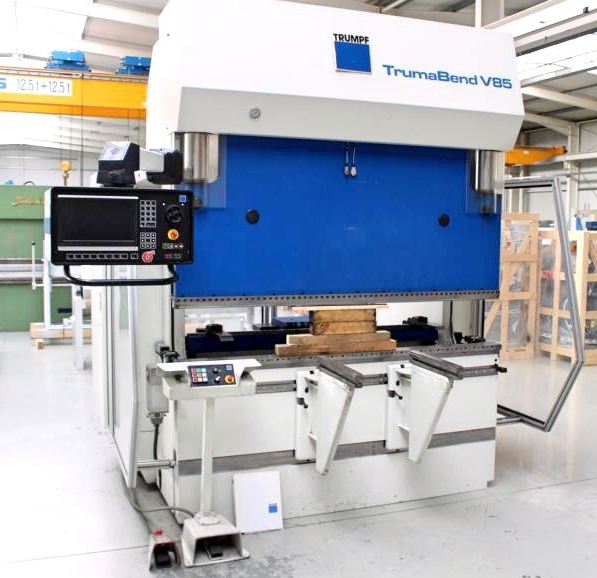

Trumpf TRUMABEND V85 85 t

Press force: 85 t
Bending length: 2050 mm
Distance between columns: 1750 mm
Throat depth: 410 mm
Stroke: 365 mm
Daylight: 535 mm
Adjustment speed: 200 mm/sec
Working feed: 1–10 mm/sec
Return speed: 135 mm/sec
Back stop adjustable: max. 600 mm
Table width: 120 mm
Max work height: 1050 mm
Operating hours: 28,500 h
Oil capacity: 200 l
Operating pressure: 340 bar
Power requirement: 14 kVA
Machine weight: 9050 kg
Machine dimensions (L×W×H): 2680 × 2100 × 2885 mm

Features:
CNC electro-hydraulic press brake
DELEM CNC control
Swiveling control panel
CNC controlled axes: Y1, Y2, X, R, Z1, Z2, I + CNC crowning
CNC electro-motorized back stop (X axis)
CNC electro-motorized height adjustment of back stop (R axis)
CNC electro-motorized adjustment of stop fingers (Z axes)
CNC pneumatic die displacement (I axis)
CNC motorized table crowning
WILA electro-hydraulic upper tool clamping
WILA electro-hydraulic lower tool clamping
Freely movable 2-hand/foot control
Two front support arms with sliding system
Side protective doors
Rear protective doors
Bending tool storage cabinet
Original operating instructions and circuit diagram
Feed speed X axis: 500 mm/sec
Feed speed R axis: 300 mm/sec
Feed speed Z axis: 1000 mm/sec
Travel range X axis: max. 600 mm
Travel range R axis: max. 250 mm
