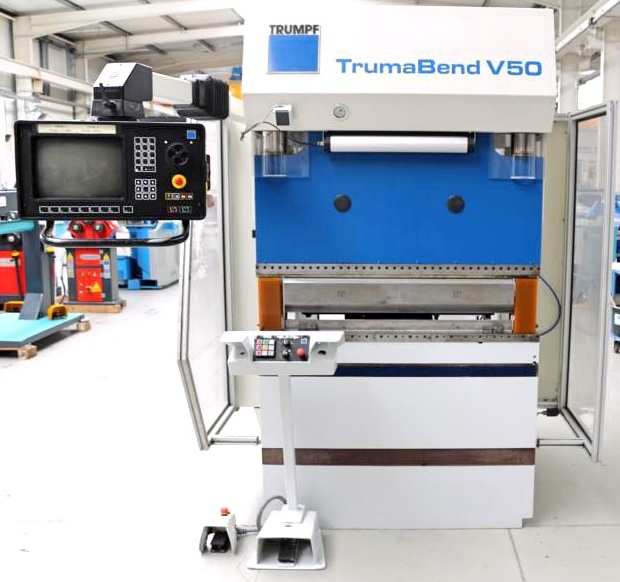

Trumpf TRUMABEND V50 50.0 t

Press force: 50.0 t
Chamfer length: 1275 mm
Distance between columns: 1040 mm
Column arm: 410 mm
Table width: 100 mm
Adjustment speed: 200 mm/sec
Working feed: 1-10 mm/sec
Return speed: 135 mm/sec
Stroke: 215 mm
Daylight: 385 mm
Tiltable up to: +/- 10 mm
Table height: 1050 mm
Travel range X axis: max. 600 - 860 mm
Traversing speed: 500 mm/sec
Axis travel: max. 250 mm
Traversing speed: 300 mm/sec
Control: DELEM
Oil volume: 80.0 l
Compressed air: 6.0 +/- 1.0 bar
Total power requirement: 8.0 KVA
Weight: 4750 kg
Machine size (L-W-H): 1930 x 2030 x 2375 mm

Features / Equipment
CNC electro-hydraulic press brake
DELEM CNC control DA 65
Pivoting control panel, front left
2D graphic product display
Tool and program library
CNC-controlled axes Y1+Y2
CNC-controlled axis X
CNC-controlled axis R
CNC-controlled axis I
CNC-controlled backgauge (X axis)
CNC-controlled height adjustment of the backgauge (R axis)
4 manually adjustable stop fingers
CNC-controlled pneumatic die shift (I axis)
TRUMPF hydraulic upper tool clamp
1 set of split upper tools (1030 mm)
TRUMPF hydraulic lower tool clamp
1 set of split lower tools (1030 mm)
1 free-moving 2-hand/foot control
1 free-moving foot switch
1 rear safety device (pivoting door)
1 side safety device - left (swinging door)
1 side safety device - right (swinging door)
Original operating instructions
