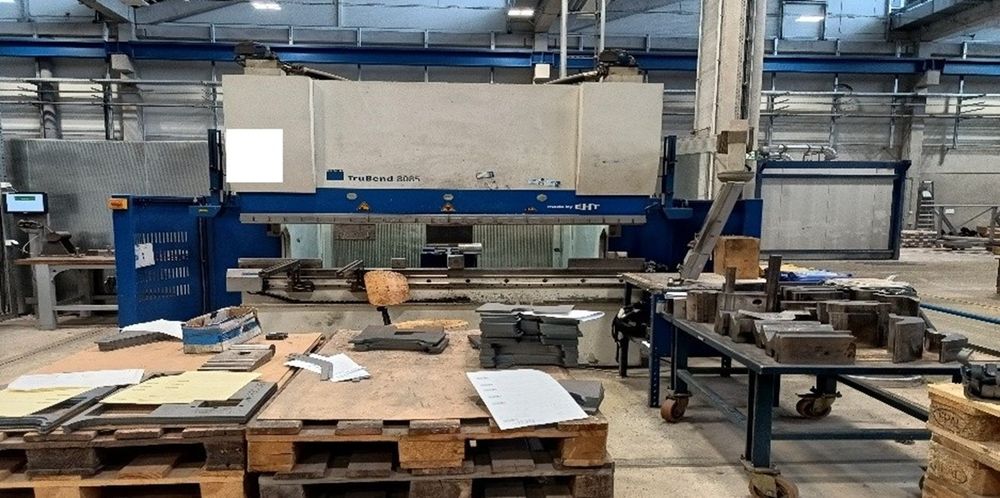

Trumpf TruBend 8085 85 t
Ref :
2808184-3-CP
Condition :
Used
Manufacturer :
Trumpf
Model :
TruBend 8085
Pressure :
85 t
Year(s) :
2007
Quantity :
1
Location :
Seller or machines location:
EUROPE (Central and Eastern)
EUROPE (Central and Eastern)
Press force: 85 t
Control: CYBELEC ModEva 10 S
Maximum bending length: 2,550 mm
Stroke: 400 mm
Number of axes: 6 (X1, X2, R1, R2, Z1, Z2)
Maximum distance from table to ram: 320–720 mm
Distance between frames: 2,150 mm
Maximum bending speed: 10 mm/s
Maximum return speed: 180 mm/s
Main motor power: 11 kW
Operating hours: 48,682 h
Number of bends: 1,499,173
Machine height: 3,023 mm
Machine length: 4,730 mm
Machine width: 3,590 mm
Machine weight: 8,600 kg
