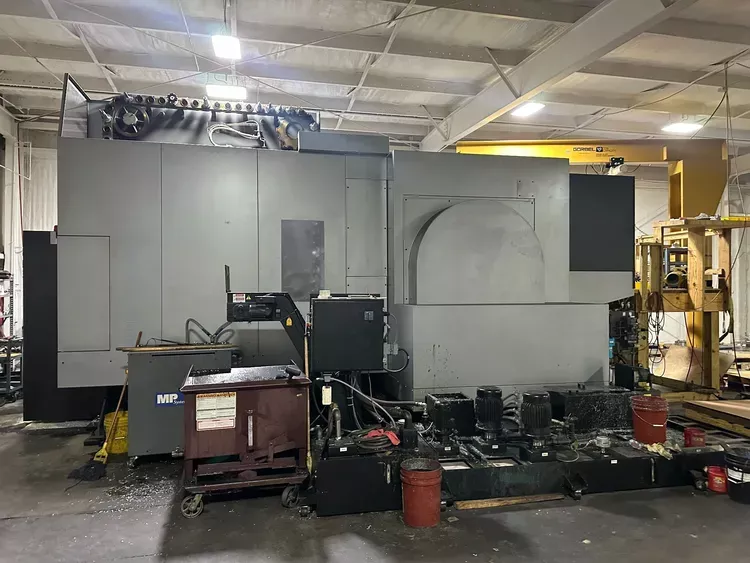

Toyoda FA 1050 5 Axis

X - Axis Travel: 59.1"
Y - Axis Travel: 55.1"
Z - Axis Travel: 45.2"
A - Axis Travel: ±120 DEGREES
C - Axis Travel Table Indexing: 360
Control: CNC (FANUC 31-MB5 CNC Color Control)
Number of Tables / Pallets: 2
Table Size - L: 41.3"
Table Size - W: 41.3"
Weight on Table: 4,400 lb
Main Spindle Horsepower: 60 hp
Main Spindle Speeds: 6,000 RPM
Main Spindle Taper: 50
Max Workpiece Diameter and Height: 52.2 x 42.5
Rapid Traverse Rate - X: 590 in/min
Rapid Traverse Rate - Y: 944 in/min
Rapid Traverse Rate - Z: 944 in/min
Automatic Tool Changer: 120
Tool Diameter: 5.72
Tool Length: 26.59"
Tool Weight: 55 lb
Machine Weight: 112,435 lb
FANUC 31-MB5 CNC 5 Axis Color Control
Extended Memory
Renishaw OMP 60 Optical with Inspection Plus Software and EasySet Software
Core Cooled Double Lead Ball Screws
BIG PLUS Spindle
120 Auto Tool Changer
99 Tool Offsets
Thru Spindle Coolant 1000 PSI
Loading Station Splash Gun
Overhead Shower Coolant
Scrapper Type Chip Conveyor with Drum Coolant Filter
All Available Manuals
