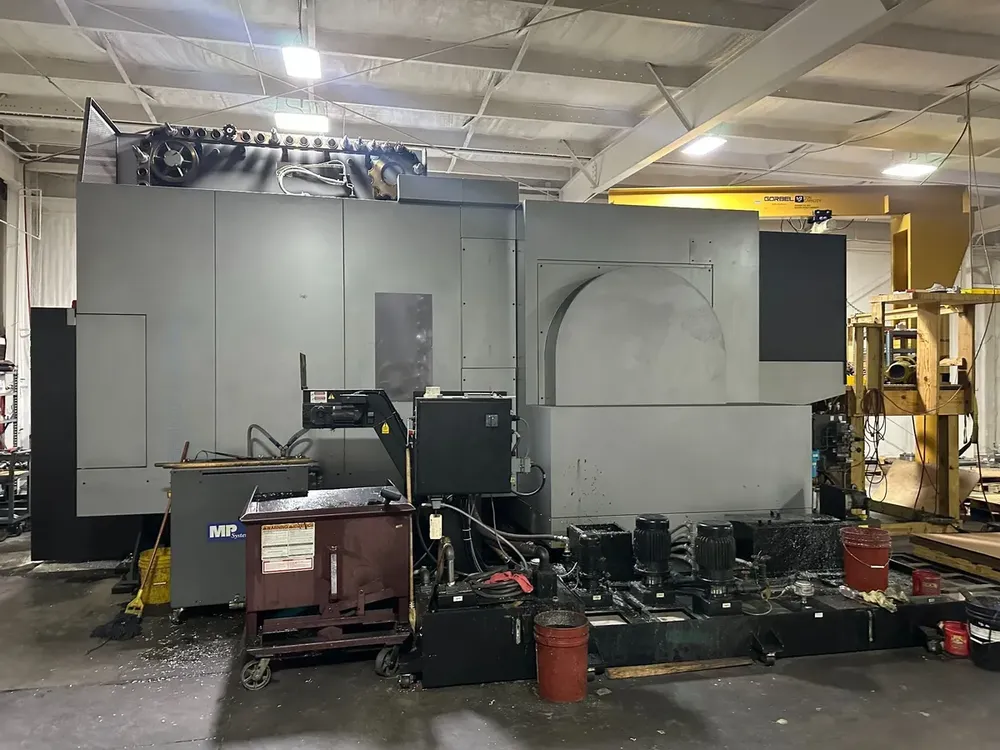

Toyoda FA 100M 5 Axis

X Axis Travel: 59.1 in
Y Axis Travel: 55.1 in
Z Axis Travel: 45.2 in
A Axis Travel: ±120 Degrees
C Axis Travel: 360 Degrees
Rapid Traverse Rate X Axis: 590 in/min
Rapid Traverse Rate Y Axis: 944 in/min
Rapid Traverse Rate Z Axis: 944 in/min
Control: FANUC 31-MB5 CNC Color Control
Extended Memory
Renishaw OMP 60 Optical Probe
Inspection Plus Software
Easyset Software
Core Cooled Double Lead Ball Screws
Big Plus Spindle
2 Pallets
Table Size: 41.3 x 41.3 in
Table Load Capacity: 4400 lb
Max Workpiece Diameter: 52.2 in
Max Workpiece Height: 42.5 in
Spindle Speed: 6000 rpm
Spindle Motor: 60 hp
Spindle Taper: 50
120 Station Automatic Tool Changer
99 Tool Offsets
Tool Diameter: 5.72 in
Tool Length: 26.59 in
Tool Weight Capacity: 55 lb
Through Spindle Coolant: 1000 psi
Loading Station Splash Gun
Overhead Shower Coolant
Scraper Type Chip Conveyor
Drum Coolant Filter
Machine Weight: 112435 lb
Available Manuals
