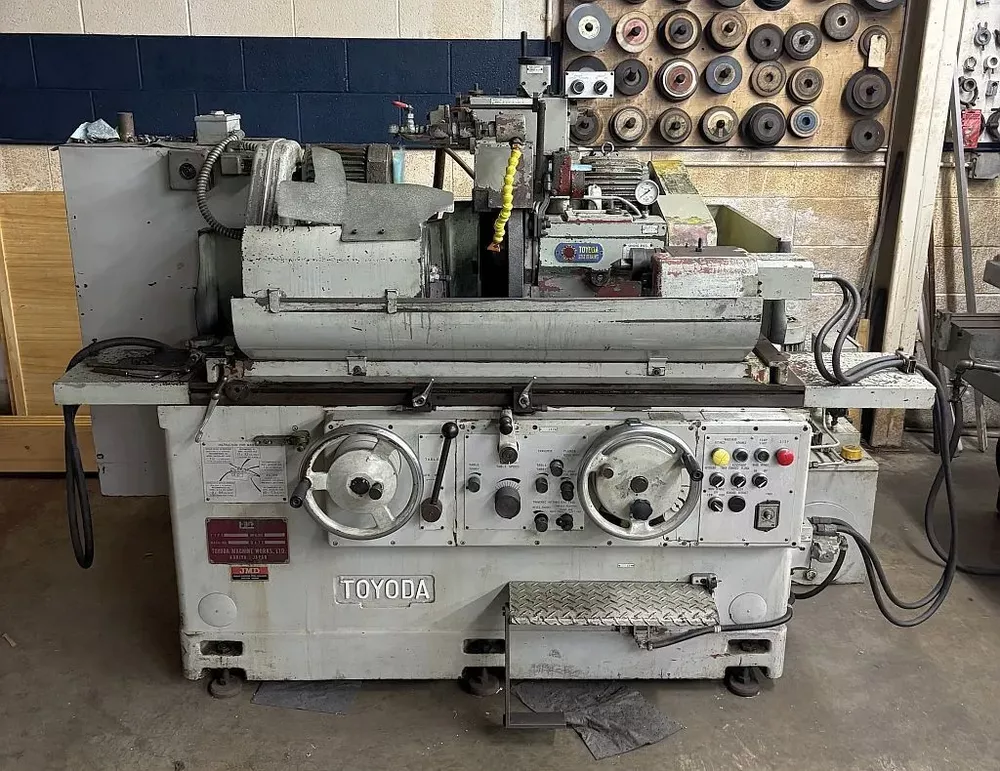

Toyoda GOP32X50

Max swing over table: 12.59"
Distance between centers: 19.7"
Max load between centers: 330 lb
Max grinding diameter: 5.9"
Grinding wheel size: 16" x 3" x 5"
Grinding wheel motor: 5 hp
Wheel surface speed: 6,500 sfpm
Table traverse speed: 2–157 IPM
Table swiveling angle: 12.5°–5° / 10°–3°
Wheelhead feed mechanism: hydraulic type
Workhead type: combination live + dead
Workhead spindle nose: MT#4 / A2-5
Spindle speed range: 16–500 RPM
Spindle speed: infinitely variable
Footstock center: MT#4
Footstock spindle stroke: 1"
Work spindle motor: 1 hp
Hydraulic pump motor: 1 hp
Wheel spindle bearing pump motor: 1/3 hp
Coolant pump motor: 1/4 hp
Hydraulic oil capacity: 15.8 gal
Wheel spindle lubricant: 3.2 gal
Coolant capacity: 40 gal
Dimensions: 108" x 71"
Weight: 5,100 lb
Plunge grinding: yes
Tailstock: hydraulic
