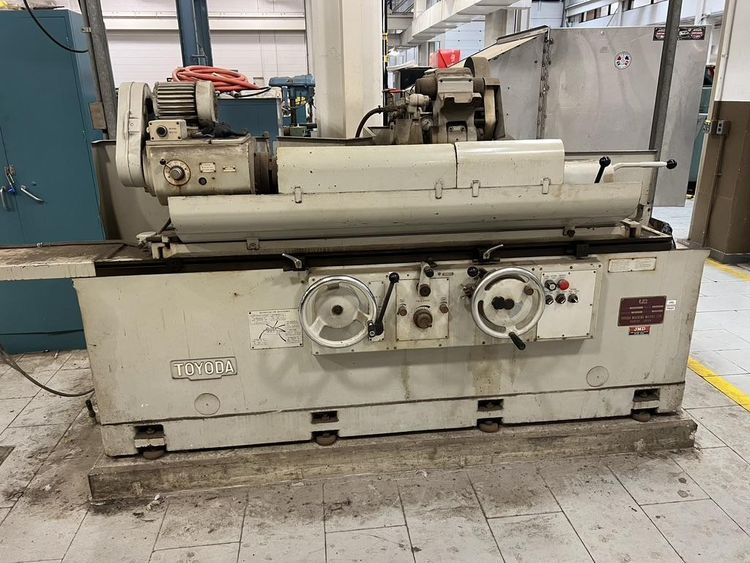

Toyoda GUS 32 X 100

TOYODA GUS 32 X 100
Year 1983

Dimensions 12" X 39.6"
Workhead (Live / Dead) LIVE/DEAD
Max Load Between Centers 330 pounds
Workhead Taper 4 MT
Z-Axis Travel 39.4 inches
X-Axis Travel 12.6 inches
Grinding Wheel Speed RPM 2960
Wheelhead (Angle / Straight / Universal) STRAIGHT
Internal Griding Attachment yes
Weight 6600 pounds

SWING......................... 12.6"
CENTER DISTANCE............... 39.6"
MAX. DIA. TO BE GROUND........ 11"
MAX. LOAD BETWEEN CENTERS..... 330 LBS
AUTO RAPID FEED STROKE........ 1.57"
HAND WHEEL FEED STROKE........ 6.29"
WHEELHEAD SWIVELING ANGLE..... 30 - 30 DEGREES
GRINDING WHEEL SIZE........... 14" X 3" X 5"
TABLE
SWIVELING ANGLE............ 10 - 0 DEGREES
TRAVERSE SPEED (INF. VARY). 2 - 157 IN./MIN.
WORKHEAD (SWIVEL TYPE)
SPINDLE.................... LIVE/DEAD
SPINDLE HOLE DIAMETER...... 3/4"
SPINDLE SPEED RANGE (VARY). 16 - 250 RPM
SWIVELING ANGLE (CCW-CW)... 90 - 30 DEGREES
MAX LOAD................... 88 LBS

EQUIPPED WITH:
SWING DOWN INTERNAL SPINDLE
STEADY REST
EXTRA WHEEL WITH HUB
BALANCING STAND
MANUAL
COOLANT SYSTEM
VERY LIMITED USE
