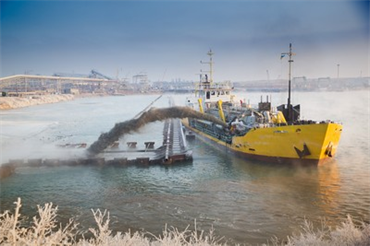

TRAILING SUCTION HOPPER DREDGER 1826 m³

Classification: Bureau Veritas I HULL MACH Hopper Dredger
Navigation Area: Unrestricted, dredging over 15 miles from shore
Length Overall: 67.62 m
Beam Overall: 13.00 m
Depth Moulded: 6.3 m
Max Draught: 5.3 m
Speed Loaded: 7.0 kn
Speed in Ballast: 8.0 kn
Gross Tonnage: 1595
Max Dredging Depth: 20 m
Nominal Loading Time: 40 minutes
Bottom Door Opening Time: 15 minutes
Fuel Capacity (MDO): 189 m³
Fresh Water Capacity: 39 m³
Hold Capacity: 1826.42 m³
Main Engines: 2 × BL 230.6
Main Engine Power: 1940 kW
Bow Thruster: WP-DF315
Bow Thruster Power: 160 kW
Dredge Pump: IHC 137.5–40–70
Jet Pump: LCC H 300–710
Capstan: 1
Windlass: 1
Bow Anchors: 2 × 1250 kg
Anchor Chain: 36 mm × 412.5 m
Mooring Winches: 4
1-Bed Cabins: 10
5-Bed Cabin: 1
Gyro: Simrad
Magnetic Compass: Jon Jilly & Gillie
Echo Sounder: JRC JEE 380
GMDSS Area: A1, A2, A3
Number of Radars: 1
AIS: 1
Echosounder: 1
Doppler Log: JLN-250
