Trak DPM SX5P Vertical 5000 RPM

Ref : 2725950-3-MT

Condition : Used

Manufacturer : Trak

Model : DPM SX5P

Type : Vertical

Spindle Speed : 5000 RPM

Year(s) : 2011

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

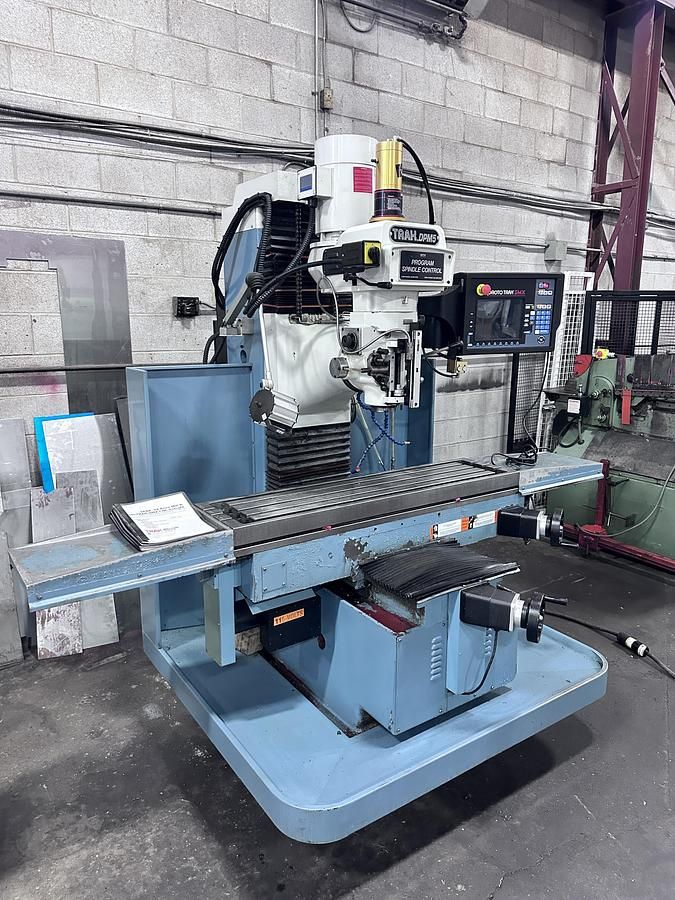

TRAK DPM SX5P
2011

Table size 12" x 50"
X-axis travel 40"
Y-axis travel 20"
Z-axis travel 23.5"
Table load capacity 1760 lbs
Spindle center to column 8" to 20"
Spindle speed range 40 - 5000 RPM
Spindle motor 5 HP
Spindle taper #40
Machine dimensions 94" x 71" x 98" H
Approximate weight 4400 lbs
PROTRAK SMX CNC control 3-axis
Digital scale for quill travel
Power drawbar
Coolant system
Manuals included
