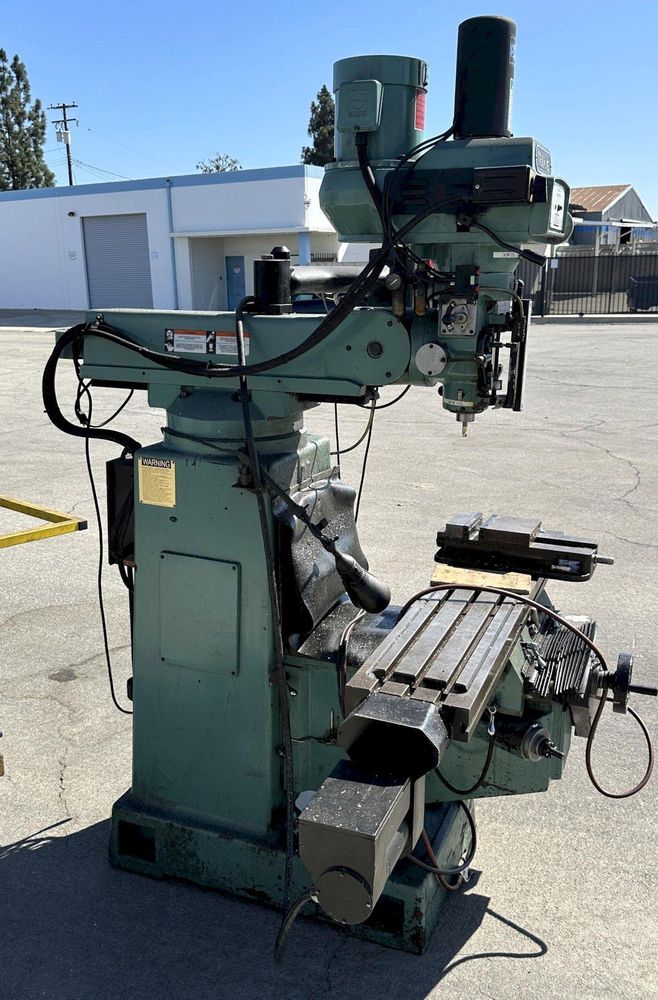

Trak K3 Edge Vertical 4200 RPM

Table size: 50” × 10”
T-slots: (3) 5/8”
Table travel X: 32”
Saddle travel Y: 16”
Knee travel: 16”
Ram travel: 15”
Quill travel: 5”
Quill diameter: 3-3/8”
Head tilt: 45° forward, 45° back, 90° left, 90° right
Maximum table weight: 850 lbs
Rapid feed rate: 100 IPM
Control: Proto Trak EDGE CNC (2-axis CNC / 3-axis readout)
Spindle taper: R-8
Spindle speeds: 60–4200 RPM
Spindle motor: 3 HP
Motor voltage: 220 / 440 V, 3 phase, 60 Hz (wired for 440 V)
Kurt pneumatic drawbar
Dimensions (L × W × H): 71” × 69” × 86”
Weight: 2850 lbs
