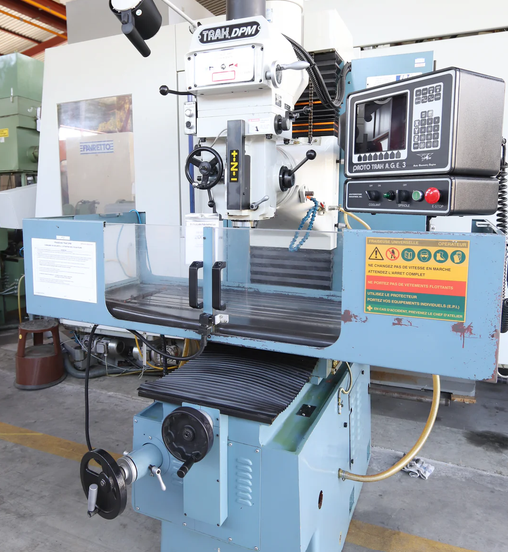

Trak XYZ DPM 750 Vertical 3600 RPM

X-Axis Travel: 750 mm
Y-Axis Travel: 400 mm
Z-Axis Travel: 610 mm
Feed Rate (X/Y/Z): 5 - 3800 mm/min

Control: PROTO TRAK A.G.E. 3
Digital Readout: 3 Axis
Mechanical Handwheels
Chip Protector
Set of Toolholders
Coolant System
Machine Lamp

Spindle Speed: 5 - 3600 RPM
Spindle Speed Ranges: 2
Spindle Taper: ISO 40
Spindle Motor Power: 5.5 kW

Vertical Milling Head Swivel: -90° / +90°
Quill Travel: 120 mm
Quill Feed Rates: 0.04 / 0.08 / 0.15 mm/rev
Drilling Capacity in Steel: 35 mm
Thread Cutting Capacity: M36
Milling Capacity in Steel: 80 - 150 cm3/min
Boring Capacity: 120 mm

Table Size: 1270 x 320 mm
Maximum Table Load: 600 kg
Distance Spindle to Table: 610 mm
Distance Spindle Axis to Slideways: 480 mm

Voltage: 415 V
Frequency: 50 Hz

Machine Weight: 2100 kg
Machine Dimensions: 1800 x 1650 x 2400 mm
