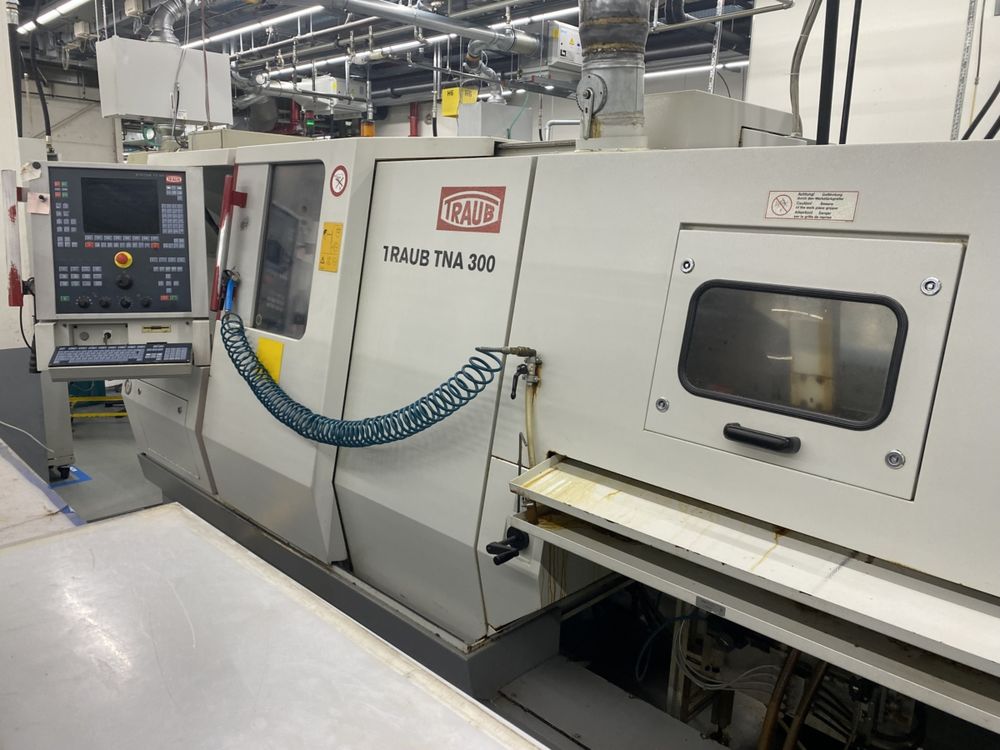

Traub CNC CONTROL Variable Speed TNA 300 3 Axis

X-axis travel: 210 mm
X-axis feed force: 5000 N
X-axis rapid traverse: 15 m/min
Z-axis travel: 450 mm
Z-axis feed force: 6000 N
Z-axis rapid traverse: 18 m/min
Y-axis travel: ±35 mm
Y-axis feed force: 6000 N
Y-axis rapid traverse: 10 m/min
C-axis speed: 100 min⁻¹
C-axis torque: 140 / 196 Nm
C-axis resolution: 0.001°
Turning diameter max: 275 mm
Turning length max: 450 mm
Swing diameter over cross slide: 395 mm
Swing diameter over bed: 520 mm
Spindle diameter: 42 mm
Spindle head DIN 55026 size: A5
Clamping fixture diameter: 160–175 mm / 200–250 mm
Tool holders: 12 pcs, DIN 60880
Tool shank diameter: 30 mm
Chisel cross-section: 20x20 mm
Tool change time 1 station: 0.5 sec
Tool change time each additional station: 0.15 sec
Tailstock quill diameter: 70 mm
Tailstock quill stroke: 60 mm
Tailstock quick retraction stroke: 280 mm
Tailstock quill setting force at 55 bar: 8600 N
Tailstock mounting: Mk 4
Steady rest clamping range: 8–95 mm
Workpiece removal device max part length: 250 mm
Workpiece removal device max part weight: 3 kg
Chip conveyor length: 800 mm
