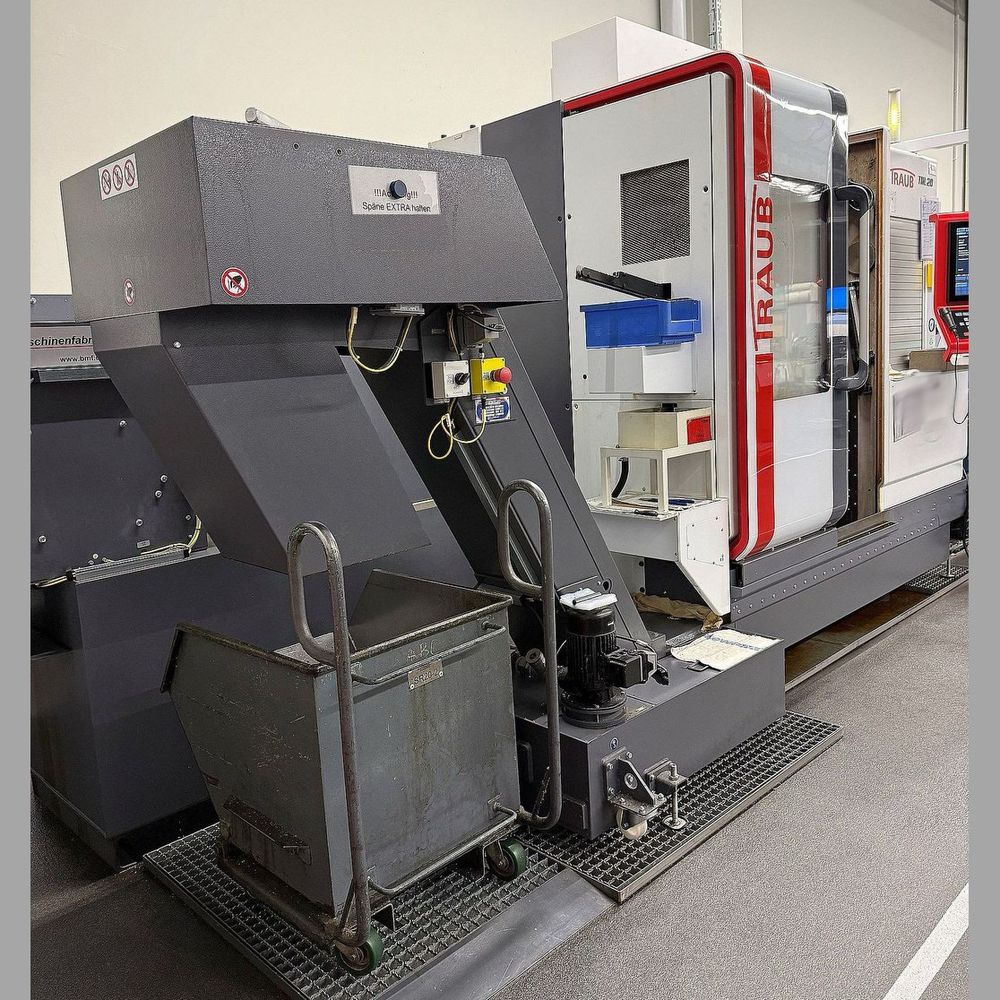

Traub TNL 20 - 9B 3 Axis

X-Axis Travel: X1 turret up
X-Axis Travel: X2 turret down
X-Axis Travel: X4 tool carrier back-side machining
Y-Axis Travel: V1 turret down
Z-Axis Travel: Z1 opposing spindle
Z-Axis Travel: Z2 turret down
Z-Axis Travel: Z4 tool carrier back-side machining
Rotary Axis: C1 opposing spindle
Rotary Axis: C2 main spindle
Swivel Axis: B upper tool carrier
Swivel Axis: H1 turret up
Swivel Axis: H2 turret down
Rotary/Finish Part Axis: X5 rotating
Linear/Finish Part Axis: Z5 sidewards travel
Control: Traub TX 8i-s
Max Turning Diameter: 20 mm
Max Spindle Speed Main: 10,000 1/min
Max Spindle Speed Opposed: 10,000 1/min
Spindle Bore Main: 20 mm
Spindle Bore Opposed: 20 mm
Tool Carrier Up Stations: 8
Tool Carrier Up Axes: X/Y/Z/H/B
Tool Carrier Down Stations: 8
Tool Carrier Down Axes: X/Y/Z/H
Back Side Carrier Stations: 4
Back Side Carrier Axes: X/Y/Z/H
Tool Breakage Monitoring
Fully Enclosed Work Area
Light in Working Area
Oil-/Emulsion Mist Extraction Unit
Slat Band Chain Chip Conveyor
Machine Operates with Oil
Coolant Unit with Paperband Filter
High Pressure Pump 80 bar
Automatic CO2-Fire Extinguishing System
Part Outfeed Conveyor
Finish-Part Pick-Up Unit
Bar Loader/Magazine FMB Turbo 2-20
Collet Chuck
1 Set Tool Holder for Turning Tools
1 Set Tool Holder for Driven Tools
