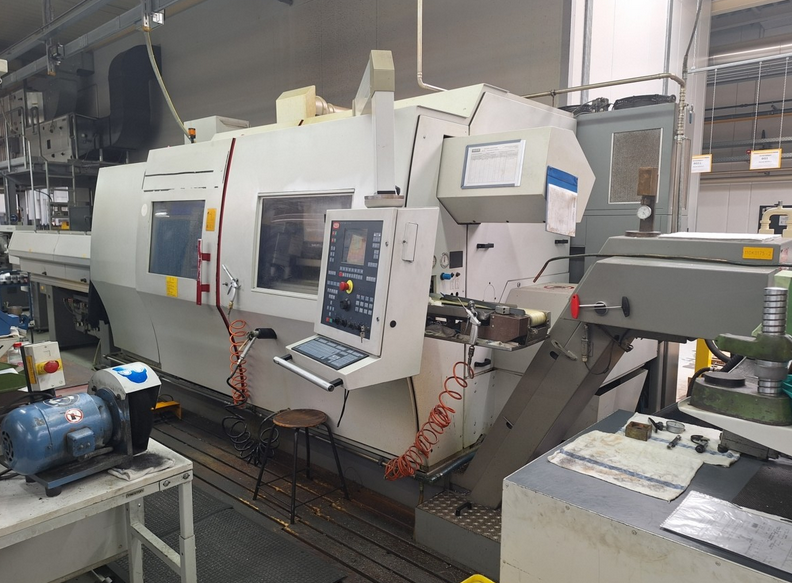

Traub TRAUB TX 8i control unit 5000 rpm TNX65 8 Axis

Axis travel X1: 290 mm
Axis travel Y1: 165 mm
Axis travel Z1: 600/950 mm
Axis travel X2: 170 mm
Axis travel Y2: ±60 mm
Axis travel Z2: 600/950 mm

Rapid traverse X/Y/Z (support 1): 18 / 18 / 30 m/min
Rapid traverse X/Y/Z (support 2/3/4): 18 / 15 / 30 m/min
Feed capacity X/Y/Z: 10 / 10 / 7 kN
B axis: 360°
C axis: 1–500 rpm
Control: TRAUB TX8i

Turning diameter: 275 mm
Turning length: 900 mm
Bar passage: 65 mm
Main/opposite spindle speed: 1–5000 rpm
Main spindle power (100% load): 25.20 kW
Main spindle power (40% load): 30.20 kW
Max torque (40% load): 180 Nm
Max torque (100% load): 135 Nm
Spindle diameter front bearing: 110 mm

Toolpiece turning speed support 1: 8000 / 2000 rpm
Toolpiece power capacity at 25% load: 5.80 kW
Max torque at 25% load: 4x18.6 / 4x74 Nm
Tool taper: TRAUB Ø60
Toolpiece turning speed support 2/3/4: 1–6000 rpm
Toolpiece power capacity at 25% load: 5.80 kW
Max torque at 25% load: 18.60 Nm
Tool taper DIN 69880: Ø40x63
Tool turret stations: 10
Driven tools: 10
Bar feeder: DNH61 / 3000
Bar length: 1000–3200 mm
Bar diameter: 18–63 mm
Hexagon capacity: max 45 mm
Total power requirement: 95 kW
Machine weight: 16 t
Machine dimensions: 10.00 x 3.50 x 3.00 m

TRAUB TX 8i control unit
Main and counter spindle with C-axis
3 turrets
1 vertical tool carrier with B-axis
Dust exhauster
Chip conveyor
Coolant system with coalescence separator
Bar feeder TRAUB Stamag DNH61/3000
2 pcs 3-jaw chuck SMW KNCS-N 170-43
2 pcs Hainbuch Spanntop chuck
40 pcs various tool holders non-driven
6 pcs various tool holders driven
Spare parts package
