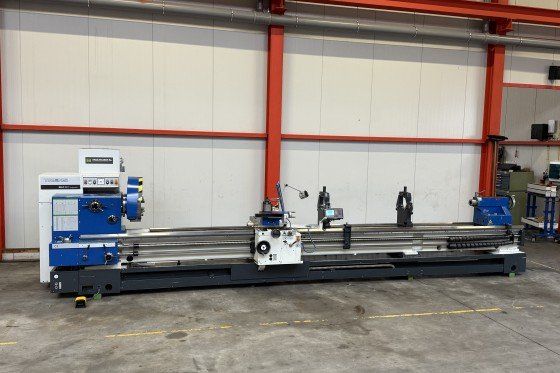

Trens Engine Lathe 1400 rpm SUI 80 CLASSIC

Ref : 2783900-3-GO

Condition : Used

Manufacturer : Trens

Type : Engine Lathe

Spindle Speed : 1400 rpm

Model : SUI 80 CLASSIC

Year(s) : 2018

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Distance between centers: 6000 mm
Swing over bed: 800 mm
Swing over cross slide: 520 mm
Swing in gap: 870 mm
Gap length: 320 mm
Spindle bore: 92 mm
Control: HeidenHain ND-780 3-axis readout
HeidenHain LS388C scales
Spindle speed range: 14 – 1400 rpm
Spindle power: 15 kW
Spindle taper: MK6
Bed width: 550 mm
3-jaw chuck: SCHUNK Ø400
4-jaw chuck: Bison
CE chuck cover for 500 mm chuck
CE chuck cover for 900 mm chuck
Steady rest capacity: Ø30 – 210 mm
Steady rest capacity: Ø210 – 370 mm
Machine length: 9000 mm
Machine width: 1900 mm
Machine height: 2100 mm
Machine weight: 7670 kg
