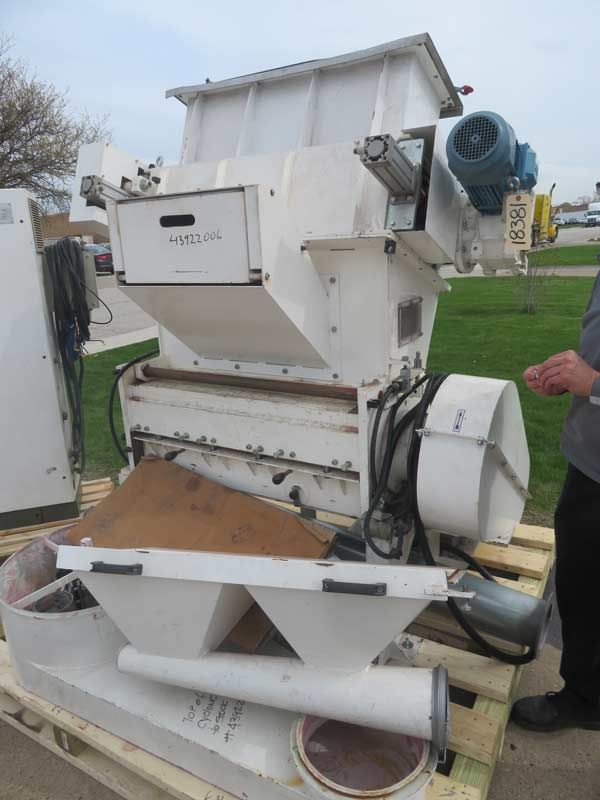

Tria 900/NS-R

Pull roll granulator.
12.5″ x 40″ feed throat (1020mm x 320mm). Five (5) knife open rotor
with two (2) bed knives.
Rotor is belt driven by a 22 Kw (30 HP). Feed hopper
with rear mounted 36″ wide steel / serrated pull rolls.
Air actuated feed rolls are powered by a 1 Kw (1.5 HP) A/C motor.
9″ x 19.5″ front material hopper entrance.
12.6 Kw (17 HP) blower discharge with Kongskilde OK160 piping and cyclone
with filter bag.
Approximate production rate of 400-600 kg/hr (880-1320 lbs/hr).
Includes free standing panel with controls.
Very Clean.
480/3/60.
Offered “as is”
