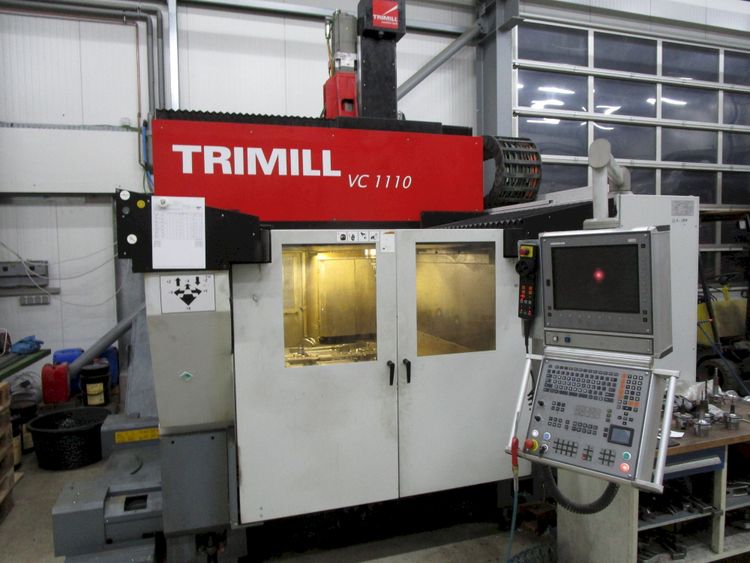

TRIMILL VC1110 3 Axis

TRIMILL - VC1110
2011


Control Unit
Brand: Heidenhain
Model: iTNC 530

Main drive
Spindle speed range: 24000 1/MIN


Technical Machine Benefits:
- High-frequency main spindle 25 kw, 170 nm, hsk 80 tool holder
- Milling spindle cooling
- Supply of compressed air through the inner spindle
- Machine table for receiving the workpieces
- Cnc control heidenhain itnc 530 hsci with 15" tft color screen
- Direct path measuring systems in all axes
- Tool changer in plate design for 10 tools
- 2 screw conveyors, 1 gooseneck slat conveyor
- Work area enclosure complete, incl. Textile roof
- High frequency finishing spindle imt 8 kw with automatic tool clamping hsk 40, 24. 000 1/min, docking station
Qualitative Machine Benefits:
- Blum laser control for tool measurement
- Low pressure minimum quantity oiling with external feed trimill inform
- Trimill teleservice
- Attachment clamping plate 1. 300 x 1. 350 x 150 mm with t-slots
