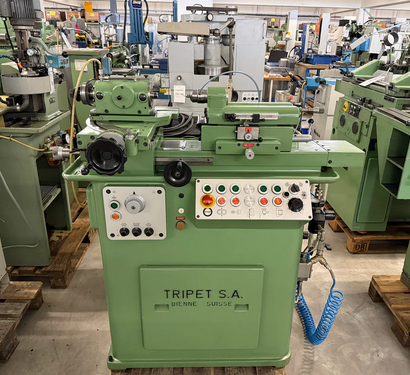

Tripet MUR 100
Ref :
2755232-3-MT
Condition :
Used
Manufacturer :
Tripet
Model :
MUR 100
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Min. internal grinding diameter 1 mm
Max. internal grinding diameter 15 mm
Grinding depth 75 mm
Centre height 60 mm
Distance between centres 125 mm
Max. workpiece diameter 80 mm
Workpiece spindle speeds stepless from 150 t/min up to 1500 t/min
Spindle hole 12 mm
Possible grinding-spindle speeds up to 120000 t/min
Grinding table travel max 225 mm
Table speeds stepless from 1 m/min up to 8 m/min
Voltage 50 Hz 3x 380 Volt
Workpiece spindle motor 0.3 kW
Machine weight about 650 kg
Overall dimensions Length 1200 mm
Overall dimensions Width 1150 mm
Overall dimensions Height 1500 mm
